Why Kitchen Cabinet Edges Swell: PVC vs ABS Edge Banding

Last Updated: October 2026 | Reading time: about 8 minutes

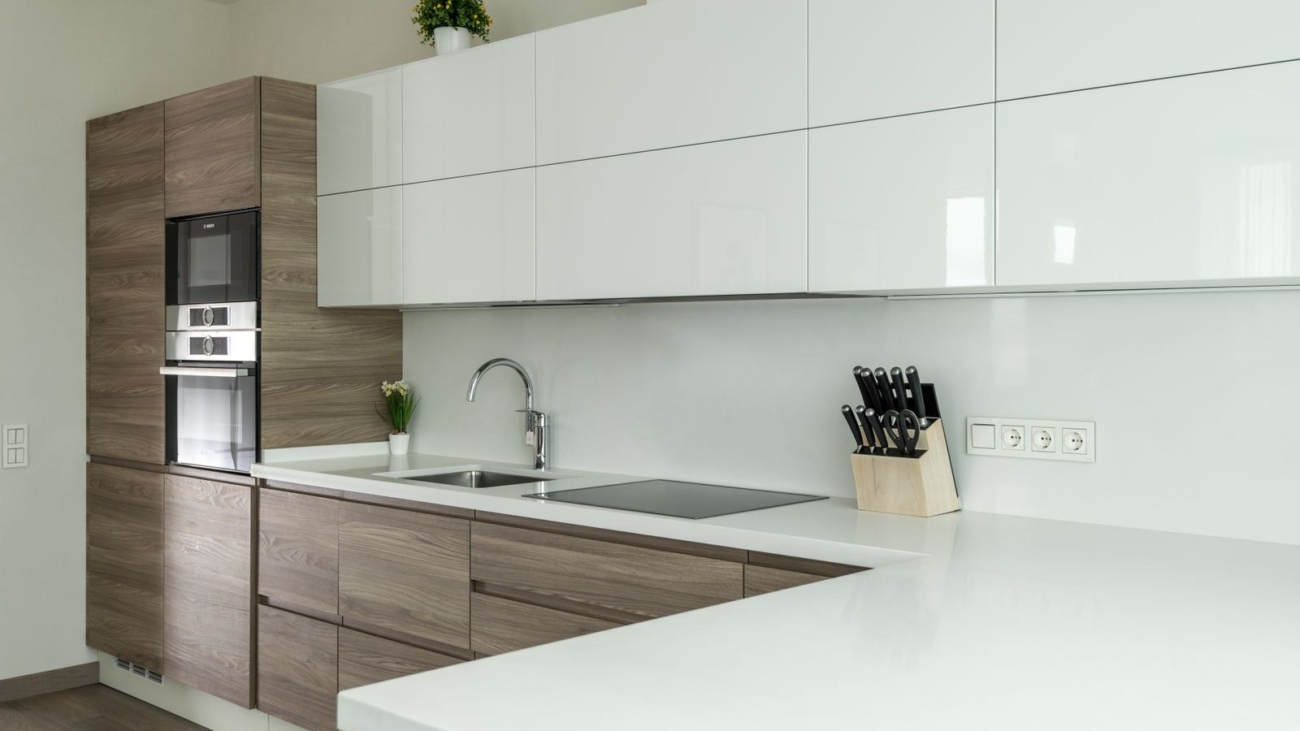

Modern Bengaluru style kitchen with wood grain base cabinets and glossy white wall cabinets showing clean laminate edges, edge banding guide 2026, by myNivasa
Every shutter in a kitchen like this has four cut edges, and the edge band is the only thing that seals them.

Short verdict: kitchen cabinet edges swell because water gets past a bare edge or a weak glue line, and the band material alone does not decide that. In our 2026 Bengaluru BOQs a 1 mm PVC band is Rs 35 per running foot and a 2 mm Rehau PVC band is Rs 62 per running foot. Choose 2 mm and a named glue for the sink base, dishwasher side and hob panel, and ABS only where heat or knocks are the worry. Share your kitchen drawing and our team will list every edge that needs a band.

Why Kitchen Cabinet Edges Swell, and What PVC or ABS Edge Banding Changes

A laminated kitchen shutter is a core board laminated on both faces, with four cut edges left open. Greenply, writing in July 2026, calls cut edges where plywood is most vulnerable to moisture; once water enters, layers swell and laminate loosens. Edge banding is the strip that closes those four edges, and the glue holding it is the actual seal.

So the honest answer to PVC versus ABS is that it is a second-order choice. Rehau, the brand in our own kitchen BOQ, says both materials suit kitchens and both passed its 24 hour domestic cleaning agent test. The difference it does give is heat: its data sheet lists PVC as softening at about 72 C and ABS at about 85 C, and calls ABS the tougher of the two. So ABS earns its place beside a hob or oven panel, while PVC is sound where the worry is a mop or a leaking trap.

What decides whether a kitchen is still tight in year four is less glamorous: whether every edge was banded, how thick the band is, and which glue was used.

My observation: homeowners spend a week on shutter colour and approve the edge band in one word, "matching".

  • 1 mm PVC band: Rs 35 per running foot in our Sarjapur Road TV unit BOQ, 180 ft for Rs 6,300.
  • 2 mm Rehau PVC band: Rs 62 per running foot in our HSR Layout kitchen BOQ, 240 ft for Rs 14,880.
  • 2 mm instead of 1 mm on the same 240 ft adds Rs 6,480, our arithmetic.
  • PVC softens near 72 C and ABS near 85 C, according to Rehau's technical data sheet.
  • Re-banding a 600 by 720 mm door is about Rs 537 in material and application at Rs 62 per ft, against Rs 1,953 to replace the door leaf at Rs 420 per sq ft.

1 mm or 2 mm PVC: What Our Kitchen Quotes Show per Running Foot

Two published myNivasa quotes give a clean comparison. Our HSR Layout kitchen table lists Rehau Germany 2 mm PVC, colour matched, at Rs 62 per running foot for 240 ft, which is Rs 14,880. Our Sarjapur Road TV unit table lists 1 mm PVC, matched, at Rs 35 per running foot for 180 ft, which is Rs 6,300. Different jobs, so the gap is not pure thickness, but these are rates you can hold a quote against. See our HSR Layout kitchen guide and our Sarjapur Road TV unit guide.

Edge band rates by thickness: myNivasa BOQ lines and retail listings, Bengaluru 2026
Edge bandSourceRate per running footTotal on that job
1 mm PVC, colour matchedmyNivasa Sarjapur Road TV unit BOQRs 35180 ft, Rs 6,300
2 mm Rehau Germany PVC, colour matchedmyNivasa HSR Layout kitchen BOQRs 62240 ft, Rs 14,880
All four edges on a wardrobe shuttermyNivasa wardrobe rangeRs 40 to Rs 70Per running foot, no total
0.8 mm gloss PVC, 22 mm wide (E3)Material Depot retail listing, 21 Oct 2026Rs 5.78 (Rs 18.96 per metre)Tape only, not applied
2 mm Rehau uPVC uni band, listed as 45 by 2 mmMaterial Depot retail listing, 21 Oct 2026Rs 30.20 (Rs 99.08 per metre)Tape only, not applied
ABS band, any thicknessNo myNivasa rate publishedNot statedAsk your factory for it as its own line

A 2 mm Rehau tape at Rs 30.20 per foot is roughly half of our Rs 62 line, and the rest is the edge bander, glue, trimming and finishing. At 240 ft, moving from 1 mm to 2 mm costs Rs 6,480 extra on our numbers (Rs 14,880 against Rs 8,400), less than the Rs 14,820 the same HSR table shows for 52 Hettich Sensys soft close hinges.

A plausibility check, my own arithmetic: 52 hinges at two per door is about 26 leaves, and a 600 by 720 mm leaf has about 8.7 ft of perimeter, so roughly 225 ft against the 240 ft banded. A quote that bands far less than door count times door perimeter is worth questioning.

Get a Line-Item BOQ

Every hinge, plywood sheet, and hardware price, fully transparent.

WhatsApp UsCall +91 94499 00222

EVA or PUR: The Glue Line You Cannot See on a Quote

Two kitchens with the same Rs 62 band can age very differently if one is bonded with EVA hot melt and the other with PUR. Wurth Machinery, a supplier of edgebanding equipment, rates EVA as moderate for moisture and heat resistance and PUR as high, and says a PUR glue line is thin and nearly invisible while an EVA line is noticeable. Both are sellers, so treat the ranking as direction, not a test result.

Carpenter cutting a board with a jigsaw outdoors, showing a raw cut edge before edge banding, kitchen cabinet edge guide for Bengaluru 2026, by myNivasa
A freshly cut edge is open core until it is banded.

I have no published myNivasa rate for a PUR glue line, so I will not put a rupee figure on the upgrade. Ask for the glue type in writing, as you would a hinge brand. A factory that uses PUR will say so, and "standard glue" usually means EVA, which is acceptable on a dry wall cabinet but not what I would want at the sink or near steam.

Compare 3 Hardware Tiers

Ozone, Hettich, Blum, see the difference in feel and life.

WhatsApp UsCall +91 94499 00222

Sink Base, Dishwasher Side and Hob Panel: Where the Band Fails First

Edges do not fail evenly. Three spots in a kitchen take the punishment, and each wants something different from the band.

L shaped grey and white kitchen with a sink run, built in ovens and a kettle on the counter, edge banding wet zone guide Bengaluru 2026, by myNivasa
The sink run, oven tower and hob side stress an edge band differently.

The sink base. Door bottoms and the carcass edges at the trap stay wet. Here I would specify 2 mm, PUR glue and a band on every edge including the ones nobody sees. If the base unit also stands on the floor, read our kitchen plinth guide, because the bottom edge fails by a different route there.

The dishwasher side and the oven tower. Steam leaves a dishwasher whenever the door opens and settles on the neighbouring cabinet edge. Rehau's data sheet puts PVC near 72 C and ABS near 85 C, so ABS beside a dishwasher or oven has more heat margin. I have not measured temperatures at these panels, so treat the margin as a spec comparison.

The hob panel. Radiant heat and splatter. Here ABS is the one place I would recommend it on heat grounds. Dry wall units can stay at 1 mm PVC with full edge coverage, as in our TV unit BOQ.

A Swollen Door: Re-band It or Replace It

If a shutter has already started to lift at the edge, there are two routes, and the arithmetic favours neither by default. Re-banding is cheap, but it only works while the board underneath is still flat and firm. A core that has soaked up water does not shrink back, so the new band would be glued onto an edge that no longer sits true. When the board has moved, the door leaf is the thing to replace.

Re-band or replace: cost arithmetic for one shutter, using Rs 62 per ft and Rs 420 per sq ft, Bengaluru 2026
Door leaf sizeAreaPerimeterRe-band at Rs 62 per ftRe-band at Rs 35 per ftReplace leaf at Rs 420 per sq ft
450 by 720 mm3.49 sq ft7.7 ftRs 476Rs 269Rs 1,465
600 by 720 mm4.65 sq ft8.7 ftRs 537Rs 303Rs 1,953
800 by 720 mm6.20 sq ft10.0 ftRs 618Rs 349Rs 2,604

Rs 420 per sq ft is the HDHMR with PU laminate shutter line in our HSR Layout BOQ. Both exclude labour to remove and refit the door. Replacement costs about three to four times re-banding, so catching a lifting edge early is the cheapest repair in the kitchen.

At the quote stage the choice between 1 mm and 2 mm is Rs 27 per foot. After a wet season it is a door replacement. What else a quote leaves out is in our kitchen quote exclusions guide.

Seven Edge Banding Lines to Write on the Quote

Here is the guide as a list to hand a designer or carpenter, each line with its figure.

Checklist infographic of seven edge banding lines for a kitchen quote: material, thickness at Rs 35 or Rs 62 per ft, glue, every cut edge, colour match, running feet 240 ft for Rs 14,880 and swollen door Rs 1,953 against Rs 537, Bengaluru 2026, by myNivasa
The seven lines, with the myNivasa figure behind each one.
Seven edge banding lines to write on a kitchen quote, with the figure behind each
#Quote lineWhat to write and the figure behind it
1Name the band materialPVC or ABS written on the quote line, not just 'edge band'. PVC softens near 72 C, ABS near 85 C (Rehau data sheet).
2Name the thickness1 mm at Rs 35 per ft (Sarjapur TV unit BOQ) or 2 mm at Rs 62 per ft (HSR Layout kitchen BOQ).
3Name the glueEVA or PUR. PUR is rated higher for water and heat (Wurth Machinery). No myNivasa PUR rate is published.
4Band every cut edgeFront, back, sides and the bottom edge of sink base doors. Wardrobe range Rs 40 to Rs 70 per ft.
5Match the band to the faceSame colour code as the laminate. Our 'edge banding upgrade' line is Rs 3,500 to Rs 8,500.
6Count the running feetHSR Layout kitchen: 240 ft at Rs 62 per ft is Rs 14,880. Ask for your own length.
7Ask what a swollen door costsA 600 by 720 mm door is 4.65 sq ft, Rs 1,953 at our Rs 420 per sq ft HDHMR line, against Rs 537 to re-band.

Line 4 is where site carpentry usually differs from a factory. Our carpenter versus modular wardrobe guide explains why front-face-only banding is the common shortcut on site-built units. For drawer systems see our tandem box versus drawer channel guide, and for the whole quote our kitchen cost by layout guide.

Free 15-Minute Design Consultation

Talk to our team about layout, style, and material choices.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About Kitchen Edge Banding

Is ABS edge banding better than PVC for a kitchen?

For heat and knocks, yes. Rehau's data sheet lists ABS as softening near 85 C against about 72 C for PVC, and describes it as tougher. For water, glue and full edge coverage matter more. I have no myNivasa ABS rate, so ask for it as a separate line.

Can a swollen cabinet edge be repaired without replacing the door?

Only while the board is still flat and firm. Once the core has absorbed water and moved, replace the leaf: Rs 1,953 for a 600 by 720 mm leaf against Rs 537 to re-band, before labour.

Do I need 2 mm band on every kitchen cabinet?

No. Use 2 mm at the sink base, dishwasher side and hob panel, and 1 mm on dry wall units. The gap is Rs 27 per running foot between our Rs 35 and Rs 62 lines.

What glue should I ask the factory to use on edge banding?

Ask for it in writing. Wurth Machinery rates PUR above EVA for water and heat, and a factory using PUR will usually say so. EVA is acceptable on dry wall cabinets, weaker near steam and the sink.

How can I check the edge banding after the kitchen is installed?

Run a fingernail along every glue line and check for gaps at corners, then look at the bottom edge of sink base doors. Then compare the BOQ banded length with door count times door perimeter.

Visit Our Vignan Nagar Studio

See real samples, hardware, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Limitations: the Rs 35 and Rs 62 figures are single lines from two published myNivasa quotes on different jobs, not a quote for your kitchen. Retail tape prices are one Material Depot listing each, read on 21 October 2026. The 225 ft check is my arithmetic, assuming two hinges per door, not a site count. Softening temperatures are Rehau specification figures. This guide has no myNivasa rate for ABS banding or PUR glue.

Sources

These sources informed the guide: Greenply on preventing plywood swelling, July 2026, Rehau edgeband technical data sheet, Wurth Machinery on EVA versus PUR edgebanding and Material Depot retail listings for Rehau 2 mm uPVC edge band. Greenply, Rehau and Wurth Machinery sell what they discuss, so treat their comparisons as directional.

Final Word

Write the band on its own quote line: material, thickness, glue and running feet. For related reading, see our HSR Layout modular kitchen guide, our kitchen plinth guide and our carpenter versus modular wardrobe guide. To see band and laminate samples, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Hand rolling cream paint on a plain interior wall, 2BHK painting cost guide, Bengaluru 2026, by myNivasa

2BHK Painting Cost in Bangalore Before Deepavali 2026

Last Updated: October 2026 | Reading time: about 9 minutes

Hand rolling cream paint on a plain interior wall, 2BHK painting cost guide, Bengaluru 2026, by myNivasa
A repaint is priced on wall area and paint grade, not on the number of bedrooms.

Short answer: It depends on three things: the paint grade, how much wall and ceiling your flat really has, and whether a painter can start by Thursday 29 October. In a Bengaluru 2BHK in 2026, our rate card puts a full repaint of a worked example flat with 2,215 sq ft of wall and ceiling at about Rs 49,000 to Rs 71,000 in standard emulsion and Rs 84,000 to Rs 1.28 lakh in premium washable emulsion. Deepavali is Sunday 8 November 2026, and a full putty repaint takes 6 to 7 working days, so confirm your painter by Friday 23 October. Send us your floor plan and we will measure the wall area and quote it line by line.

How Much Does It Cost to Repaint a 2BHK in Bangalore Before Deepavali?

A full repaint of a Bengaluru 2BHK in 2026 costs about Rs 49,000 to Rs 71,000 in standard emulsion and Rs 84,000 to Rs 1.28 lakh in premium washable emulsion, once you count every wall and ceiling. Those totals come from our 2026 rate card, which is Rs 22 to Rs 32 per sq ft of wall area for standard emulsion, Rs 38 to Rs 58 for premium washable emulsion and Rs 60 to Rs 85 for ultra premium lines, applied to 2,215 sq ft. If you supply the paint and pay only for labour, the rate is Rs 18 to Rs 28 and the same flat costs Rs 40,000 to Rs 62,000.

The 2,215 sq ft is a worked example, not a project. I built it from four rooms with 10 foot ceilings so you can repeat the sum for your own plan. Deepavali falls on Sunday 8 November 2026, which is 19 days after Tuesday 20 October. Bengaluru painting rates peak from October to December as families finish before the festival, so the realistic question is not only what it costs but whether a crew is free.

My observation: most families compare quotes by the total at the bottom. I compare the three numbers behind it: rate per sq ft, the area the painter counted and the grade of paint. Two of the three are usually missing from the page.

  • Standard emulsion: Rs 22 to Rs 32 per sq ft all in, which is Rs 48,730 to Rs 70,880 on the 2,215 sq ft example flat.
  • Premium washable emulsion: Rs 38 to Rs 58 per sq ft, or Rs 84,170 to Rs 1,28,470 on the same flat.
  • Paint quantity: Asian Paints quotes 140 to 160 sq ft per litre for two coats of Royale Luxury Emulsion, but our site planning figure is about 110 sq ft per litre per coat.
  • Timing: Deepavali is Sunday 8 November 2026, and a full putty repaint takes 6 to 7 working days, so the last realistic start is Thursday 29 October.
  • Second colour: each deep accent wall adds Rs 1,000 to Rs 3,000, far less than the Rs 35,440 to Rs 57,590 gap between standard and premium grade on this flat.

Book a Free Site Visit

We measure your space and confirm feasibility on the same visit.

WhatsApp UsCall +91 94499 00222

How Much Wall Area and Paint Does a 2BHK Need?

Painters bill on area, so the first job is measuring it. For each room, multiply the perimeter by the ceiling height, subtract about 21 sq ft per door and 15 sq ft per window, then add the ceiling area. Our published 10 by 12 ft master bedroom comes to 524 sq ft this way. Here is the whole worked flat.

Paintable area of a worked example 2BHK, 10 ft ceilings
RoomSizeWalls after doors and windowsCeilingTotal
Master bedroom10 by 12 ft404 sq ft120 sq ft524 sq ft
Bedroom 210 by 10 ft364 sq ft100 sq ft464 sq ft
Living and dining12 by 20 ft, 2 doors, 1 window583 sq ft240 sq ft823 sq ft
Kitchen above tile line8 by 10 ft324 sq ft80 sq ft404 sq ft
Whole flat1,675 sq ft540 sq ft2,215 sq ft

Bathrooms, balcony and passage are left out, so a real flat will add to this. Now the paint. Asian Paints lists Royale Luxury Emulsion at 140 to 160 sq ft per litre for two coats on a prepared surface, which means about 14 to 16 litres for 2,215 sq ft. Our own site planning figure is 100 to 120 sq ft per litre per coat, the number I used for our 10 by 12 bedroom, and it gives 37 to 44 litres for the same flat. That is a gap of roughly 2.6 times. The manufacturer figure is a theoretical coverage and assumes a sealed, even wall, while real plaster drinks paint. Ask the painter which figure the quote uses and how many litres it lists.

Get Your Project Timeline in 48 Hours

Milestone-by-milestone plan from measurement to handover.

WhatsApp UsCall +91 94499 00222

Why Do Painting Quotes for the Same 2BHK Differ by Rs 1 Lakh?

2BHK full repaint cost by paint grade, worked example of 2,215 sq ft, Bengaluru 2026
Paint gradeRate per sq ftCost for 2,215 sq ft
Labour only, you supply paintRs 18 to Rs 28Rs 39,870 to Rs 62,020
Standard emulsion, all inRs 22 to Rs 32Rs 48,730 to Rs 70,880
Premium washable emulsionRs 38 to Rs 58Rs 84,170 to Rs 1,28,470
Ultra premium lineRs 60 to Rs 85Rs 1,32,900 to Rs 1,88,275

Grade alone moves the bill by Rs 35,440 to Rs 57,590 between standard and premium on this flat. Three other things move it too. The first is the unit. A rate of Rs 25 per sq ft of wall area and a rate of Rs 25 per sq ft of carpet area are very different bills, because wall and ceiling area together can run to more than twice the carpet area, as the 2,215 sq ft example does. The second is scope: whether the ceilings, putty and primer are in the price. The third is who buys the paint.

Published figures disagree for the same reason. NoBroker lists Rs 11,000 for a 2BHK, and its page quotes Rs 14 to Rs 40 per sq ft for fresh painting and Rs 6 to Rs 35 for repainting. Our own earlier guides give Rs 20,000 to Rs 30,000 for an economy distemper flat and Rs 50,000 to Rs 75,000 for premium emulsion with full preparation on a roughly 900 sq ft apartment. Those totals assume less painted area than the 2,215 sq ft counted here, which includes ceilings. Rate times your own area is the only fair comparison, so ask every painter for all three numbers in writing.

Hands holding a paint swatch fan against a grey wall while choosing wall colours, 2BHK repaint Bengaluru 2026, by myNivasa
Fix the colour and grade before the painter starts, because both change the quote.

What Is the Last Date to Start a 2BHK Repaint and Finish Before Deepavali?

Work backwards from Sunday 8 November. A full putty repaint of a 2BHK needs 6 to 7 working days in our plan, and you want Friday and Saturday before the festival free for putting furniture back, cleaning and pooja preparation. That makes Thursday 29 October the last realistic start, and Wednesday 28 October the comfortable one. To start then, the painter must be confirmed by Friday 23 October. NoBroker puts a 1BHK at 2 to 3 days and a 3BHK at 5 to 7 days including drying. Our schedule runs longer because it includes two putty and sanding days.

Repaint schedule for a 2BHK before Deepavali 2026: measure 1 day, putty and sanding 2 days, primer and first coat 1 to 2 days, second coat 1 day, touch-up and clean 1 day, by myNivasa
Five stages, 6 to 7 working days with Sundays excluded.
2BHK Repaint Schedule Before Deepavali 2026
StageWhat happensDuration
1Measure walls, fix grade and quote1 day
2Cover furniture, fill cracks, putty, sand2 days
3Primer and first coat1 to 2 days
4Second coat1 day
5Touch-up and deep clean1 day

Primer needs to dry before the first coat and putty needs to cure before sanding, so these stages cannot be compressed by adding painters. Asian Paints also states a 28 day curing period before painting new masonry, so this schedule suits an existing flat only. If walls are in good condition and need no putty, the job can run closer to the NoBroker figures. If you are repainting the wall behind a mandir, our pooja corner guide covers the clearances around the lamp.

Book Your 2026 Slot Now

Calendar is filling. Reserve with a refundable Rs. 5,000.

WhatsApp UsCall +91 94499 00222

Which Walls Should You Paint Now and Which Can Wait?

If the date is tighter than the budget, paint what guests see and leave the rest. Each lever below is priced from the same rate card and the same example flat.

Where a 2BHK repaint can save money, standard and premium grade rates
LeverArea affectedSaving
Skip all ceilings540 sq ftRs 11,880 to Rs 17,280 at standard rates
Leave the kitchen for later404 sq ftRs 8,888 to Rs 12,928 at standard rates
Premium grade in the living room only, standard elsewhere823 sq ftRs 13,168 to Rs 21,398 less than premium throughout
One deep accent wall instead of a full second colour1 wallAdds only Rs 1,000 to Rs 3,000

The premium line is the cheapest one to rethink. A different grade for each room is a normal request. Colour choice is the second decision. Our two colour bedroom guide explains why the headboard wall takes the darker shade, and our wallpaper cost guide shows when paper beats paint on one wall. If the flat also needs rewiring, do it first, because chasing walls means repainting, as our 2BHK rewiring cost guide shows.

Visit Our Vignan Nagar Studio

See real samples, hardware, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About 2BHK Painting Before Deepavali

Can I still get my 2BHK painted before Deepavali if I call today?

Yes, if a crew can start by Thursday 29 October. Deepavali is Sunday 8 November 2026 and a full putty repaint takes 6 to 7 working days. A touch-up repaint with no putty is shorter, but rates peak from October to December, so confirm quickly.

Is a painting quote per sq ft of carpet area or wall area?

It can be either, which is the main reason quotes differ. Our rate card is per sq ft of wall area with materials and labour included. For the example 2BHK that is 2,215 sq ft including ceilings, compared with the 600 to 900 sq ft carpet area our 2BHK renovation guide uses, so always ask which area the painter counted.

How much does a second colour add to a repaint?

A deep accent wall adds Rs 1,000 to Rs 3,000 in our published figures, for masking and an extra coat. That is small beside the paint grade, which moves a 2,215 sq ft flat by Rs 35,440 to Rs 57,590 between standard and premium emulsion.

Is repainting cheaper after the festival?

Slightly. Bengaluru painting rates dip from March to May and peak from October to December before Diwali. On a full 2BHK repaint our published ranges are Rs 20,000 to Rs 30,000 in economy distemper and Rs 50,000 to Rs 75,000 in premium emulsion with full preparation, and April beats November.

Free 15-Minute Design Consultation

Talk to our team about your layout, style, and material choices.

WhatsApp UsCall +91 94499 00222

Limitations: the 2,215 sq ft flat is a worked example from assumed room sizes, not a myNivasa project, and your painted area will differ. The rate card is our published 2026 range, not a quote for your flat. The 140 to 160 sq ft per litre figure is Asian Paints' stated coverage on a prepared surface and our 100 to 120 sq ft per litre per coat is a planning figure. The 6 to 7 day schedule is our plan and varies with wall condition and crew size. NoBroker rates are a third party listing.

Sources

These sources informed the guide: Asian Paints Royale Luxury Emulsion product sheet, NoBroker on painting cost in Bangalore and BankBazaar on the Lakshmi Puja 2026 date. The first is a manufacturer sheet and the second is a service marketplace, so read their figures accordingly. Our own rates come from our published myNivasa 2026 rate card.

Final Word

Measure the area, fix the grade and book the crew before Friday 23 October, and the numbers above will let you check any quote. For related reading, see our interior design cost breakdown and our 2BHK renovation cost guide. To see samples and finished work, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Brass lamp lit beside a carved wooden idol and plant on a home altar shelf, pooja corner guide, Bengaluru 2026, by myNivasa

A 6 Point Checklist for a Pooja Corner in a 2BHK Flat

Last Updated: October 2026 | Reading time: about 9 minutes

Brass lamp lit beside a carved wooden idol and plant on a home altar shelf, pooja corner guide, Bengaluru 2026, by myNivasa
A pooja corner works when the lamp has a heat-safe ledge and clear space around it.

Short answer: Correction: a pooja corner in a 2BHK does not need its own room, and it does not have to sit in the northeast corner of the flat. It needs a wall that passes six checks: not shared with a bathroom, the person praying facing east or north, a unit 45 to 60 cm wide and 25 to 35 cm deep, 300 mm clear around the diya, a 900 mm clear approach and closed storage below. In a Bengaluru 2BHK in 2026 we price a wall mounted, corner or niche unit at Rs 18,000 to Rs 90,000. Send us your floor plan and we will mark the wall.

Where Can a Pooja Corner Go in a 2BHK With No Pooja Room?

Most Bengaluru 2BHK flats have no spare room for worship, so the pooja corner ends up on whichever wall is free. That is where it goes wrong. The free wall is often the one that backs onto a bathroom, carries the TV or sits beside the stove. Spacewood lists four workable spots in a small flat: a living room wall kept away from the TV, a foyer niche, an unused wall in the kitchen and dining area away from the sink and stove, and a bedroom corner only when a shutter screens it.

My first step is simple. I take the floor plan, mark a 60 cm square on each candidate wall and run the six checks in the next section. In a Marathahalli 2BHK we built a wall mounted acrylic mandir with a fluted back panel and warm LED backlighting for about Rs 32,000, and the money went into the panel and the light, not into extra carpentry.

Here is the floor arithmetic, which most guides skip. A floor standing unit 60 cm wide and 35 cm deep covers 0.21 sq m, about 2.3 sq ft. The 900 mm approach in front of it, at 600 mm wide, is another 0.54 sq m, about 5.8 sq ft that must stay clear. So a pooja corner claims roughly 8 sq ft of a 2BHK, and only the 2.3 sq ft is lost for good, because the approach doubles as a walkway. A wall mounted unit uses no floor at all but still needs the same clear approach.

My observation: families spend weeks choosing the mandir design and minutes choosing the wall. The wall decides whether the corner is used every morning.

  • Size: 45 to 60 cm wide and 25 to 35 cm deep, per Spacewood, with idols no taller than 10 inches per the Casagrand Vastu guide.
  • Floor use: a 60 by 35 cm floor standing unit is 2.3 sq ft, and the 900 by 600 mm approach is 5.8 sq ft that stays clear.
  • Flame: keep at least 300 mm clear around the diya and 300 to 500 mm to decorative items (Homestyler).
  • Direction: Vastu guides rank northeast first, then east, then north, and avoid a wall shared with a bathroom.
  • Cost: Rs 18,000 to Rs 40,000 wall mounted, Rs 35,000 to Rs 70,000 corner, Rs 45,000 to Rs 90,000 niche, our 2026 bands.
  • Timing: Deepavali is Sunday 8 November 2026, 24 days after 15 October, and our built-in pooja corner timeline is 3 to 5 weeks.

Free 15-Minute Design Consultation

Talk to our team about layout, style, and lifestyle fit.

WhatsApp UsCall +91 94499 00222

Which Wall Passes the 6 Point Pooja Corner Checklist?

Six point pooja corner checklist: wall not shared with a bathroom, prayer facing east or north, 45 to 60 cm wide and 25 to 35 cm deep, 300 mm clear around the diya, 900 mm clear approach, closed storage below
Run every candidate wall through these six checks before you fix the unit.
6 point pooja corner checklist for a 2BHK
#CheckWhat to look for
1Wall not shared with a bathroomAlso not under a staircase
2Prayer facing east or northNortheast first, then east, then north
345 to 60 cm wide, 25 to 35 cm deepIdols up to 10 inches tall
4300 mm clear around the diyaBrass or stone plate, wipe-clean back panel
5900 mm clear approachNo TV, stove or washing machine on the wall
6Closed storage belowCamphor, matches, books; nothing above the idols

The first check is the easiest to fail. A wall shared with a bathroom or toilet, or a space under a staircase, is on every Vastu avoid list I read, including Casagrand, and it is also a practical problem because a bathroom wall can carry damp and plumbing. The second check is the direction the person faces while praying. The sources I checked agree on east, with north as the fallback, but they differ on which way the idol faces and one contradicts itself, so I design for the person praying and suggest you confirm the idol direction with your family priest.

Checks 3 to 5 are measurements. The 45 to 60 cm by 25 to 35 cm footprint comes from Spacewood, the 300 mm flame clearance and the 900 mm approach from Homestyler. Check 6 is storage: camphor, agarbatti, matches and prayer books go in a closed drawer below, and nothing is stored above the idols.

Free Vastu Review of Your Home

Share your floor plan; we return Vastu-aligned corrections and layout tweaks.

WhatsApp UsCall +91 94499 00222

Wall Mounted, Corner or Niche: Which Form Fits Which Wall?

Once the wall passes, the form follows from the wall. A plain wall with nothing behind it suits a wall mounted unit. A dead corner of the living room suits a corner unit. A niche only works where the wall has no pipes or conduit running through it, so I trace the electrical and plumbing lines before I promise one.

Cost of three pooja corner types in a Bengaluru 2BHK in 2026: wall mounted Rs 18,000 to 40,000, corner unit Rs 35,000 to 70,000, niche with jaali Rs 45,000 to 90,000
Our indicative 2026 cost bands for the three pooja corner forms.
Pooja corner types for a 2BHK, Bengaluru 2026
TierCostWhat is included
Wall mountedRs 18,000 to 40,000Uses no floor area; Acrylic or glass shutter; Fluted back panel; Warm LED backlight
Corner unitRs 35,000 to 70,000Uses an unused corner; Storage in the base; Engineered wood, laminate; Closed drawer for camphor
Niche with jaaliRs 45,000 to 90,000Carved into a wall; Jaali screen; Cove light; Wall must be free of pipes

These are the same bands as in our pooja room design and cost guide, which also covers materials and a full separate room. What this guide adds is the choice of wall. If the wall you like is on the TV side of the living room, move the corner to the opposite wall before you compare quotes.

Bengaluru living room with a wall-mounted TV panel, white wall cabinets and a wooden feature wall, choosing a pooja corner wall in a 2BHK, 2026, by myNivasa
In a living room the pooja corner belongs on a wall that does not carry the TV.

How Much Wall Does a Mandir Need, and How Far Should the Flame Be?

Plan the flame first and the carpentry second. Homestyler recommends at least 300 mm of space around the diya, which is about 12 inches, and 300 to 500 mm between the flame and decorative items. Spacewood adds a heat gap from any wooden shutter, a brass or stone plate under the lamp and a wipe-clean back panel, because oil and soot stain porous surfaces. In my own practice the diya stays on an open ledge and the shutter closes only after the flame is out.

Light the shelf, not the room. In a Whitefield apartment we hid one warm strip behind a fluted panel and added a single small spot, and the lighting cost under Rs 6,000. We use 2700K to 3000K warm white, which keeps the panel looking like brass and wood rather than an office shelf. Ask for a dedicated switch for the strip, and see our 2BHK rewiring cost guide for how electrical points are quoted.

Use a dedicated incense holder with an ash catcher, and snuff the flame with a cap rather than blowing on it, which can scatter embers (Homestyler).

Get a Free Layout Sketch

Send your floor plan; we return a custom layout in 3 working days.

WhatsApp UsCall +91 94499 00222

What If the Northeast Corner Is a Bathroom Wall or the Kitchen?

In a flat the builder has already fixed the northeast corner, so it can land on a bedroom, a bathroom wall or the kitchen. Casagrand ranks the directions northeast first, east second and north third, and says to avoid south and southwest. It also says that without a separate room a northeast corner cabinet in the living room is the answer. When the northeast corner fails the wall checks, I move to the east wall of the living room before I accept a bathroom wall in the northeast.

That is a design trade-off, not a ruling. If your family follows a specific tradition, a Vastu consultant should confirm the final position. Our job is to make sure whichever wall you choose also passes the practical checks for heat, size and storage. A pooja corner in the foyer is a good example: Casagrand cautions against idols facing the entrance door directly, so a foyer niche works only on a side wall.

Can a Pooja Corner Be Ready Before Deepavali on 8 November?

Deepavali falls on Sunday 8 November 2026, which is 24 days after 15 October. Our published timeline for a built-in pooja corner is 3 to 5 weeks. The table puts the two together.

Pooja corner order date against Deepavali on 8 November 2026
Order confirmedBuild timeReady onAgainst Deepavali
Sunday 18 October3 weeks (fast end)Sunday 8 NovemberOn the day
Thursday 15 October3 weeks (fast end)Thursday 5 November3 days before
Tuesday 20 October3 weeks (fast end)Tuesday 10 November2 days after
Thursday 15 October5 weeks (slow end)Thursday 19 November11 days after

The honest reading is that a built-in unit confirmed by about 17 or 18 October can just make 8 November at the fast end, and anything later will miss it. If your date is tight, I would keep the existing prayer space for this year with a heat-safe plate and a clear approach, and build the proper corner after the festival rather than rush the carpentry.

See Real Bengaluru Projects Near You

Visit our finished projects, feel the space, verify the finish.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About a Pooja Corner in a 2BHK

Can I put a pooja corner in the bedroom of a 2BHK?

The guides I checked advise against it. Casagrand lists bedrooms among the places to avoid, and Spacewood allows a bedroom corner only when a shutter screens it. A living room or foyer wall is the better answer.

How wide should a wall mounted pooja unit be?

Spacewood puts a small wall mounted or corner mandir at about 45 to 60 cm wide and 25 to 35 cm deep. That is roughly 18 to 24 inches wide, so a 60 cm unit fits on almost any plain wall in a 2BHK.

How far should a diya be from the wooden shutter?

Homestyler advises at least 300 mm of space around the diya and 300 to 500 mm between the flame and decorative items. Spacewood adds a heat gap from any wooden shutter and a brass or stone plate under the lamp.

Can the pooja corner share a wall with the TV or the kitchen?

Avoid it. Spacewood says to keep the unit away from the TV and from the sink and stove, and Casagrand lists the TV, washing machine and kitchen stove as things to stay clear of. A plain living room wall, a foyer niche that does not face the main door, or an unused kitchen-dining wall away from the stove works better.

How much does a pooja corner cost in a Bengaluru 2BHK in 2026?

Our 2026 bands are Rs 18,000 to Rs 40,000 for a wall mounted unit, Rs 35,000 to Rs 70,000 for a corner unit and Rs 45,000 to Rs 90,000 for a niche with jaali and cove light. A wall mounted acrylic mandir with a fluted back panel and warm LED backlight in a Marathahalli 2BHK cost about Rs 32,000.

Visit Our Vignan Nagar Studio

See real samples, material palettes, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Limitations: the 45 to 60 cm by 25 to 35 cm size comes from a manufacturer blog (Spacewood), the 300 mm clearance from a design site (Homestyler) and the Vastu rules from a developer blog (Casagrand), none of which is a building code. The Rs 32,000 Marathahalli figure and the Rs 6,000 Whitefield lighting figure are single published myNivasa projects, not quotes for your flat. The 3 to 5 week timeline is our published range and depends on your design and material. Vastu guidance varies between sources, so confirm your own tradition.

Sources

These sources informed the guide: Spacewood on small mandir design for flats, Casagrand on Vastu tips for pooja placement in Bangalore flats and Homestyler on diya placement in a pooja room. The first two are builder and manufacturer content, so treat their products and claims accordingly. Our own figures come from published myNivasa guides.

Final Word

Choose the wall before the mandir, and run it through the six checks. For related reading, see our pooja room design and cost guide, our L-shaped sofa size guide for planning the living room around it and our wall panelling cost guide for the back panel. To see samples and finished work, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Modern Bengaluru kitchen with wood-grain base cabinets, white upper cabinets and a clean plinth line at the floor, plinth material guide 2026, by myNivasa

3 Kitchen Plinth Mistakes That Let Mop Water Swell Ply

Last Updated: October 2026 | Reading time: about 7 minutes

Modern Bengaluru kitchen with wood-grain base cabinets, white upper cabinets and a clean plinth line at the floor, plinth material guide 2026, by myNivasa
The plinth is the strip between cabinet and floor, and the only part of the kitchen that takes mop water every day.

Short answer: Choose an aluminium or PVC plinth if the floor is mopped daily, because neither absorbs water. In our HSR Layout kitchen table a 100 mm anodised aluminium plinth is Rs 240 per running foot in 2026, or Rs 5,280 for a 22 ft run. Plywood plinths fail through bare cut edges and cabinets built on the floor, not through the plywood grade alone. Send us your kitchen plan and we will mark every plinth length.

Which Kitchen Plinth Material Survives Mop Water: Aluminium, PVC or Laminated Board?

The plinth is the 100 mm strip that hides the legs under your base cabinets. It is the one part of a kitchen that meets floor water every day, from mopping, a leaking dishwasher hose or an overflowing bucket. That is why a kitchen that looks perfect for two years can show swollen, lifting laminate at the bottom edge after one wet monsoon.

Aluminium wins on water behaviour because there is nothing to absorb. PVC board comes close, with one caveat: Metal and More, writing in June 2026, notes that a peeled foil exposes the foam core to moisture. Laminated plywood is the option that fails when edges are exposed, because laminate protects the faces but not the cut edges. The table sets the four options side by side.

Kitchen plinth materials compared for water, Bengaluru 2026
Plinth materialWhat water does to itKnown weak pointPrice evidence
Anodised aluminium profile, 100 mmNothing. Metal does not absorb water or swell.Cut ends need caps and neat corner joints.Rs 240 per running foot in our HSR Layout kitchen table
PVC or foam PVC boardThe core does not absorb water, but a peeled foil exposes it (Metal and More, June 2026).Softens near sustained heat and holds screws less well than plywood (Greenply, June 2026).No plinth rate is published. Whole PVC kitchens run Rs 650 to Rs 1,100 per sq ft (Metal and More) and Rs 800 to Rs 1,400 for full PVC (Greenply).
BWP plywood with laminateHandles prolonged water in the board, as long as laminate and edge seal stay intact.Cut edges and the bottom edge stay exposed unless sealed.BWP carcass with acrylic shutters runs Rs 1,200 to Rs 2,000 per sq ft for the whole kitchen (Greenply).
BWR or MR plywood, MDF or particle board with laminateBWR tolerates humidity and minor moisture but not prolonged contact (Greenply, April 2026). MR and board types are weaker still.The first mop splash that gets past the laminate edge.Lowest-grade option for a wet zone, so avoid it for the plinth.

The price column is honest about what is published. Our own number is the aluminium line from the HSR Layout kitchen table on our HSR Layout kitchen guide. For PVC and plywood, I could find only whole-kitchen rates per sq ft, which are a different measure from a plinth strip, so I have not converted them into a per-foot plinth price.

My observation: homeowners compare shutter finishes for weeks and approve the plinth in one line. The plinth takes more water than any shutter and gets the least attention.

  • Aluminium 100 mm plinth: Rs 240 per running foot in our HSR Layout table, Rs 5,280 for 22 ft.
  • BWR plywood tolerates humidity and minor moisture but not prolonged water contact (Greenply, April 2026), so it is the wrong grade for a plinth strip.
  • One 8 by 4 ft sheet yields about 11 strips of 100 mm, roughly 88 running feet, so a 22 ft plinth uses 25 percent of a sheet.
  • A plinth LED strip is Rs 400 per running foot in our JP Nagar kitchen guide, so a 22 ft run adds Rs 8,800.
  • Whole PVC kitchens run Rs 650 to Rs 1,100 per sq ft (Metal and More, June 2026), against Rs 1,100 to Rs 2,200 for aluminium.

Free Material Sample Kit

Ply, laminate, hardware, veneer, real samples couriered.

WhatsApp UsCall +91 94499 00222

Mistake 1: Leaving the Plywood Cut Edge Bare at the Floor

A laminated board has two protected faces and four raw edges. When the plinth is cut from a sheet, the long bottom edge sits against the floor, exactly where a mop leaves a film of water. Plywood draws that water up through its layers, the glue line weakens and the laminate lifts from the edge first. BWR grade, which Greenply describes as resistant to humidity and minor moisture but not prolonged contact, is the lower grade, and a plinth strip is exactly where it is tempting to use it.

Woman mopping a tiled floor beside a kitchen counter in a Bengaluru style open plan home, mop water and kitchen plinth damage guide 2026, by myNivasa
Daily mopping puts water against the bottom 100 mm of every base cabinet.

The fix is a choice, not a repair. Either specify an aluminium or PVC profile for the visible plinth, or ask in writing that every cut edge of a plywood plinth be edge-banded and the bottom edge sealed before fixing. For the ply grades themselves, Greenply sets out the BWP and BWR difference in its April 2026 guide.

Mistake 2: Building the Cabinet Box on the Floor Instead of on Legs

The plinth should be a cover, never a support. The cabinet box should stand on adjustable legs, with the plinth fixed in front of them and the box bottom clear of the tile. If a carpenter builds the box straight on the floor and trims it with a plywood skirt, the carcass itself soaks up every spill.

White base cabinets with a recessed plinth gap above a light floor in a compact Bengaluru kitchen, plinth height and material guide 2026, by myNivasa
The cabinet box should stand on legs, with the plinth acting only as a cover.

You can check this yourself before handover. With the plinth removed, you should see legs and a gap under the cabinet bottom, not a plywood side panel running to the tile. A swollen plinth on a leg-mounted cabinet is a strip to replace. A swollen carcass is a cabinet to rebuild. The same 100 mm base is built into our wardrobes, which is why the clear internal height in our wardrobe internal sizes guide starts after a 100 mm plinth.

Compare 3 Hardware Tiers

Ozone, Hettich, Blum, see the difference in feel and life.

WhatsApp UsCall +91 94499 00222

Mistake 3: Accepting the Plinth as a Lump Sum Inside the Kitchen Price

Many quotes fold the plinth into the carcass price with no length, no material and no rate. That is how a plywood strip gets swapped in for the aluminium profile you thought you had approved. Ask for four items on one line: material, 100 mm height, measured running feet and rate per foot. Our aluminium line in the HSR Layout table reads exactly that way, 22 ft at Rs 240 per foot for Rs 5,280.

Aluminium plinth cost at Rs 240 per foot, and the plywood sheet share for the same run
Kitchen runPlinth lengthAluminium 100 mm at Rs 240 per ftShare of one 8 by 4 ply sheet cut into 100 mm strips
Single wall run10 ftRs 2,40011 percent
Short L or parallel15 ftRs 3,60017 percent
10 by 10 L kitchen, two 10 ft walls20 ftRs 4,80023 percent
Our HSR Layout kitchen quote22 ftRs 5,28025 percent
Large U kitchen30 ftRs 7,20034 percent

The second column of the table is the useful one. A plywood plinth uses a quarter of one sheet on a 22 ft run, so ask your carpenter for the sheet price and take 25 percent of it. That number is what a plywood plinth saves against Rs 5,280. For most kitchens the saving is small beside the cost of a swollen strip, but it is your number to check, and I have not guessed it here because sheet prices vary by brand and grade.

Plinth lighting belongs on the same line. Our JP Nagar kitchen guide lists a plinth LED strip at Rs 400 per running foot, which adds Rs 8,800 to a 22 ft run. For the other lines that decide a kitchen price, see our cost by layout guide and our kitchen quote exclusions guide.

Get Your Project Timeline in 48 Hours

Milestone-by-milestone plan from measurement to handover.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About Kitchen Plinth Material

Is a BWP plywood plinth fine if it is laminated on both faces?

Only if the cut edges are also edge-banded and the bottom edge is sealed. Laminate protects the faces, not the cut ends, and BWP does not help once water enters through an unsealed edge. Aluminium or PVC avoids the question.

What height should a kitchen plinth be?

100 mm is the height we use, both for the aluminium profile in our HSR Layout table and for the wardrobe base in our wardrobe sizes guide. Adjustable legs set the final gap, so confirm the height against your floor level before cutting.

Can a swollen plinth be replaced without touching the cabinets?

Yes, when the cabinet box stands on legs, because the plinth is a separate strip fixed in front of them. If the carcass itself has soaked up water, the cabinet needs rebuilding, which is why leg-mounted boxes matter.

Does a plinth LED strip suit a wet kitchen floor?

It can, but it sits at the lowest point where water collects. Our JP Nagar kitchen guide lists a plinth LED strip at Rs 400 per running foot. Ask in writing whether the strip and its connector are splash-protected, and keep the driver off the floor.

See Real Bengaluru Projects Near You

Visit our finished projects, feel the hardware, verify the finish.

WhatsApp UsCall +91 94499 00222

Limitations: the Rs 240 per foot figure is one line in a published myNivasa HSR Layout table, not a quote for your kitchen. PVC and plywood figures are whole-kitchen rates from other publishers, not plinth rates. The sheet yield of 11 strips assumes 3 mm saw cuts on a 1,220 mm sheet width. Swelling behaviour is explained by how plywood absorbs water, not from a dated site record.

Sources

These sources informed the guide: Greenply on BWP versus BWR plywood, April 2026, Greenply on PVC kitchen cabinets, June 2026 and Metal and More on aluminium versus PVC kitchens, June 2026 (a Hyderabad-focused page). The Greenply pages are manufacturer content and favour its own products. Our own figures come from myNivasa published kitchen tables.

Final Word

Pick the plinth material before the shutter finish, and write it on its own quote line. For related reading, see our kitchen countertop replacement cost guide, our kitchen tall unit cost guide and our quartz versus steel sink guide. To see plinth samples, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

U-shaped modular kitchen with beige and taupe cabinets and a white countertop in a Bengaluru home, layout cost guide 2026, by myNivasa

Modular Kitchen Cost in Bangalore: Rs 1.45 to 8.2 Lakh

Last Updated: October 2026 | Reading time: about 9 minutes

U-shaped modular kitchen with beige and taupe cabinets and a white countertop in a Bengaluru home, layout cost guide 2026, by myNivasa
A U-shaped kitchen wraps three walls, which is why it sits at the top of the layout price ladder.

Short answer: A modular kitchen in Bangalore costs Rs 1.45 to Rs 2.65 lakh as a straight layout, Rs 1.85 to Rs 4.2 lakh as an L, Rs 2.2 to Rs 4.8 lakh as a parallel and Rs 3.5 to Rs 8.2 lakh as a U in 2026, for cabinetry alone. Add 18 percent GST and about Rs 61,000 of chimney, sink and faucet lines from one of our real bills, and the delivered range becomes Rs 2.32 lakh to Rs 10.29 lakh. These are myNivasa rate bands, not a quote. Send us your kitchen size and we will price all four layouts for it.

Straight, L, Parallel or U: What Does Each Kitchen Layout Cost in Bangalore in 2026?

The layout decides how much cabinet you buy, and cabinets are the one line of a kitchen quote that grows with the room. Our bands come from the HSR Layout 2026 rate table on our HSR Layout kitchen guide, built on kitchens from 50 to 180 sq ft. Our Whitefield page lists lower starting prices, Rs 1.08 lakh for a straight and Rs 2.55 lakh for a U, so treat the table as a mid-market reference.

Cabinetry means carcass, shutters and soft-close hardware. The delivered band adds 18 percent GST and a fixed block of Rs 61,000 taken from the bill of quantities of a 110 sq ft U-shaped kitchen we fitted at Sobha The Supreme, HSR Layout: a Faber chimney at Rs 38,000, a Carysil sink at Rs 14,500 and a Jaquar faucet at Rs 8,500. The same block is applied to every layout, so only the layout changes between rows.

Modular kitchen cost by layout, Bangalore 2026
LayoutTypical kitchen sizeCabinetry bandDelivered band
Straight50 to 80 sq ftRs 1.45 to Rs 2.65 lakhRs 2.32 to Rs 3.74 lakh
L-shape80 to 120 sq ftRs 1.85 to Rs 4.2 lakhRs 2.79 to Rs 5.57 lakh
Parallel75 to 110 sq ftRs 2.2 to Rs 4.8 lakhRs 3.21 to Rs 6.27 lakh
U-shape110 to 160 sq ftRs 3.5 to Rs 8.2 lakhRs 4.74 to Rs 10.29 lakh

My observation: homeowners ask which layout is cheapest. The better question is which lines in the quote refuse to shrink when the kitchen does, because those decide how much a smaller layout really saves.

  • Cabinetry bands in 2026: straight Rs 1.45 to Rs 2.65 lakh, L Rs 1.85 to Rs 4.2 lakh, parallel Rs 2.2 to Rs 4.8 lakh, U Rs 3.5 to Rs 8.2 lakh.
  • A U floor price is 2.4 times a straight on cabinetry (Rs 3.5 lakh against Rs 1.45 lakh) but only 2.0 times delivered (Rs 4.74 lakh against Rs 2.32 lakh).
  • The Rs 61,000 fixed block is 42 percent of a Rs 1.45 lakh straight kitchen and 17 percent of a Rs 3.5 lakh U.
  • Our parallel floor is 19 percent above our L floor; two other Bangalore pages put it 25 to 75 percent above.
  • Spec and finish move a price 1.8 to 2.3 times inside one layout, almost as much as the 2.4 times between straight and U.
  • A parallel or U needs about 7.4 ft between facing walls for one cook and 7.9 ft for two, using 600 mm base units and the NKBA aisle widths.

Free Cost Estimate in 48 Hours

Share your BHK size and locality, get a room-wise breakdown.

WhatsApp UsCall +91 94499 00222

Why a U Costs 2.4 Times a Straight on Paper but About 2 Times Delivered

Start with the floors of the table. A straight kitchen at Rs 1,45,000 carries Rs 26,100 of GST and the Rs 61,000 fixed block, so it lands at Rs 2,32,100. A U at Rs 3,50,000 carries Rs 63,000 of GST and the same Rs 61,000, so it lands at Rs 4,74,000. Divide the two and the delivered gap is 2.04 times, against 2.41 times on cabinetry alone. At the ceilings the gap narrows from 3.09 times to 2.75 times, Rs 3,73,700 against Rs 10,28,600.

The reason is that the chimney, sink and faucet do not care how many walls carry cabinets. They are 42 percent of the cabinetry on a Rs 1.45 lakh straight kitchen and 17 percent on a Rs 3.5 lakh U. The practical result is that stepping down from an L to a straight saves Rs 47,200 at the floor, of which Rs 7,200 is GST, and the Rs 61,000 stays. Our chimney sizing guide explains the Rs 22,000 to Rs 48,000 chimney band.

Modular kitchen layout quote lines Bengaluru 2026: cabinetry Rs 1.45 to Rs 8.2 lakh by layout, countertop Rs 160 to Rs 450 per sq ft, chimney Rs 22,000 to Rs 48,000, sink and faucet Rs 23,000, tall unit Rs 18,500 to Rs 28,000, plumbing shift Rs 25,000 to Rs 80,000, GST 18 percent, by myNivasa
Seven quote lines for a Bengaluru kitchen. Only the first two grow with the layout.
Kitchen Layout Price: What Is In, What Is Out
#Cost itemTypical range
1Cabinets, shutters, soft-close hardwareRs 1.45 to Rs 8.2 lakh by layout
2Countertop, granite or quartzRs 160 to Rs 450 per sq ft
390 cm filterless chimneyRs 22,000 to Rs 48,000
4Sink and faucet pair, in our BOQRs 23,000
5Tall unit pull out, 600 mmRs 18,500 to Rs 28,000
6Plumbing or gas point shiftRs 25,000 to Rs 80,000
7GST on cabinetry, HSN 940318 percent

Get a Line-Item BOQ

Every hinge, plywood sheet, and wire, transparent quotation.

WhatsApp UsCall +91 94499 00222

Is a Parallel Kitchen Really Dearer Than an L-Shape?

In our table, only a little. The parallel floor is Rs 2.2 lakh against Rs 1.85 lakh for the L, 19 percent more, and the ceiling is Rs 4.8 lakh against Rs 4.2 lakh, 14 percent more. Two facing runs and an L in a comparable room hold similar cabinet length.

Other Bangalore pages disagree. Tint, Tone and Shade lists starting prices of Rs 2 lakh for an L and Rs 3.5 lakh for a parallel in its July 2026 guide, which is 75 percent more. McCoy Mart lists Rs 2 to Rs 5 lakh for an L and Rs 2.5 to Rs 6 lakh for a parallel, 20 to 25 percent more. Neither page states a kitchen size or what the figure includes, so compare the shape of the gap, not the rupees.

Parallel galley modular kitchen with white cabinets and wooden floor, layout cost guide Bengaluru 2026, by myNivasa
A parallel kitchen puts two runs face to face, so the aisle between them sets whether it works.

Get a Free Layout Sketch

Send your floor plan; we return a custom layout in 3 working days.

WhatsApp UsCall +91 94499 00222

How Wide Must the Room Be Before a Parallel or U Layout Works?

The National Kitchen and Bath Association guidelines set a work aisle of at least 42 inches for one cook and 48 inches for more than one. Base units in Bengaluru are normally 600 mm deep, so two facing runs plus a 42 inch (1,067 mm) aisle need 2,267 mm, about 7.4 ft, wall to wall. For two cooks the sum is 2,419 mm, about 7.9 ft. The same gap applies between the two legs of a U. This is arithmetic on a 600 mm assumption, not a measured project.

Below that width, a parallel or U squeezes the aisle and the doors collide. The L and the straight layout have no such limit, and they are the cheaper rows in the table. The same guidelines cap the sink, cooktop and refrigerator triangle at 26 ft in total, with no leg shorter than 4 ft or longer than 9 ft. Measure the room width first, then pick the layout.

A 10 by 10 L Kitchen Quoted at Rs 2.6 Lakh: What the Bill Becomes

Take a 10 by 10 ft L-shaped kitchen with a BWP carcass, laminate shutters and mid-range soft-close hardware, quoted at Rs 2,60,000 for cabinetry. That sits inside our L band of Rs 1.85 to Rs 4.2 lakh. Seven lines sit outside it: countertop, chimney, hob, sink and faucet, a modest plumbing shift, eight electrical points and 50 sq ft of backsplash, together Rs 1,08,500. GST at 18 percent adds Rs 46,800. The delivered bill is Rs 4,15,300, which is Rs 1,55,300 or almost 60 percent above the number first shown.

The seven lines are itemised in our guide to what a Bengaluru kitchen quote leaves out.

Book a Free Site Visit

We measure your space and confirm feasibility on the same visit.

WhatsApp UsCall +91 94499 00222

Which Moves the Bill More: the Layout or the Finish?

Inside a single layout, our bands span 1.8 to 2.3 times from floor to ceiling: straight 1.83, L 2.27, parallel 2.18, U 2.34. Those spans are what finish, plywood grade and hardware do. Across layouts, the floor of a U is 2.41 times the floor of a straight, while an L is only 1.28 times. So stepping from an L to a straight changes the bill by about a quarter, while stepping from a premium to an entry specification can change it by more than half.

Our HSR Layout shutter-area rate card shows the same lever: Rs 1,650 to Rs 2,400 per sq ft for entry, Rs 2,400 to Rs 3,800 for standard and Rs 3,800 to Rs 5,200 for premium, so a premium floor is 2.3 times an entry floor. A 100 sq ft kitchen carries 95 to 110 sq ft of shutter area, which at standard rates gives Rs 2.28 lakh to Rs 4.18 lakh. Keep the layout your room needs and economise on spec first. Our tall unit cost guide prices one spec item: a 600 mm Hettich Cargo pull out at Rs 18,500 to Rs 28,000.

Which Layout Fits a 1BHK, 2BHK or 3BHK Flat?

Our table pairs each shape with a home type. A straight kitchen suits a 1BHK, studio or rental. An L suits a 2BHK or compact 3BHK. A parallel fits older builder apartments with narrow kitchens. A U suits a 3BHK or joint family. An island needs at least 160 sq ft, costs Rs 6.8 to Rs 12.5 lakh and adds 30 to 45 percent over a U of similar finish.

Two published notes help the choice. A U adds 18 to 30 percent over an L of equivalent quality, and a well-planned straight kitchen with full-height pull outs can deliver 70 to 80 percent of the storage of a small L at about 60 percent of the cost. Our Whitefield and JP Nagar kitchen guides show how bands shift by locality.

See Real Bengaluru Projects Near You

Visit our finished projects, meet homeowners, verify the finish.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About Modular Kitchen Layout Cost

Is GST included in a modular kitchen layout price?

Usually not. GST on modular wooden furniture under HSN 9403 is 18 percent and is added on top of the cabinetry figure. On a Rs 2,60,000 quote that is Rs 46,800. Ask each studio in writing whether its figure is inclusive.

Does moving the sink change the cost of a layout?

Yes. Moving a plumbing or gas line in a Bengaluru kitchen costs Rs 25,000 to Rs 80,000 depending on distance, and it sits outside the cabinetry price.

How much does a U-shaped kitchen add over an L-shaped one?

At the same finish and quality, a U adds about 18 to 30 percent to the cabinetry price in our experience. Table floors show a larger gap because U kitchens are bigger rooms.

How much does an island add to a U-shaped kitchen?

An island adds about 30 to 45 percent over a U of similar finish and needs at least 160 sq ft of kitchen. Our island band is Rs 6.8 lakh to Rs 12.5 lakh.

Does a straight kitchen give enough storage?

It can, with planning. A well-designed straight kitchen with full-height pull outs and drawer units in the lower run can deliver 70 to 80 percent of the storage of a small L at about 60 percent of the cost.

Does the countertop cost change with the layout?

Yes, because the slab area follows the run length. Our installed bands are Rs 160 to Rs 350 per sq ft for Indian granite and Rs 280 to Rs 450 for engineered quartz. On the standard 30 sq ft of a 10 by 10 L kitchen that is Rs 4,800 to Rs 10,500 for granite and Rs 8,400 to Rs 13,500 for quartz. See our countertop cost guide.

Visit Our Vignan Nagar Studio

See real samples, hardware, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Limitations: bands are myNivasa 2026 published ranges, not quotes. The Rs 61,000 fixed block comes from one bill and is applied to every layout for comparison. The 7.4 ft and 7.9 ft widths are arithmetic on a 600 mm base depth.

Sources

These sources informed the guide: NKBA Kitchen Planning Guidelines, McCoy Mart on modular kitchen cost in Bangalore, and Tint, Tone and Shade on modular kitchen cost in Bangalore, 2026. Our own bands come from myNivasa published rate tables and one Sobha The Supreme bill of quantities.

Final Word

Pick the layout your room width allows, then price cabinetry, countertop and the fixed block as separate lines. For related reading, see our HSR Layout modular kitchen cost, our kitchen quote exclusions guide and our quartz versus steel sink guide. To see kitchen samples, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Bedroom with a floating wall-mounted dressing counter, tall mirror and grey stool beside a wardrobe, Bengaluru bedroom design 2026 by myNivasa

Built-In or Freestanding Dressing Table in Bengaluru?

Last Updated: October 2026 | Reading time: about 10 minutes

Bedroom with a floating wall-mounted dressing counter, tall mirror and grey stool beside a wardrobe, Bengaluru bedroom design 2026 by myNivasa
A wall-mounted dressing counter with a tall mirror and a stool that tucks underneath.

Short answer: If your Bengaluru bedroom is 130 sq ft or smaller, build the dressing counter into the wardrobe wall, and if it is 160 sq ft or larger, a freestanding table is a fair choice. A freestanding table takes 4.5 sq ft of floor (3 x 1.5 ft) and is listed at Rs 6,499 to Rs 44,999 in October 2026. A 3 ft built-in bay takes no extra furniture floor and works out at Rs 23,100 to Rs 79,800 in 2026 when billed as wardrobe area at our published finish rates. Send myNivasa your floor plan and we will sketch both in your room.

Which Dressing Table Setup Suits a 120 to 180 sq ft Bengaluru Bedroom?

A dressing setup has four jobs: a counter at a comfortable height, a mirror on your eye line, light that shows colour honestly, and drawers within reach. A freestanding table does all four as one piece of furniture that can leave the room with you. A built-in bay lets the wardrobe carcass play the table, which is why it adds no furniture to the floor. The choice comes down to three numbers: floor, rupees and flexibility.

On floor, the numbers are small but they land in a tight place. In our 10 x 12 ft bedroom plan, a queen bed takes 32.5 sq ft, the wardrobe 16 sq ft, two bedside tables 4.5 sq ft and the door swing 7 sq ft, which leaves 60 sq ft for walking and dressing. A freestanding dresser of 3 x 1.5 ft takes 4.5 sq ft of that 60, or 7.5 percent of the free floor. The same mirror and drawers built inside the wardrobe cost no floor.

On rupees, the built-in bay costs more at the bottom and less at the top. Pepperfry lists freestanding dressing units from Rs 6,499 to Rs 44,999 in October 2026. A 3 ft bay, priced as 21 sq ft of floor-to-ceiling wardrobe at our 2026 rates, is Rs 23,100 to Rs 29,400 in membrane laminate, Rs 29,400 to Rs 37,800 in matte laminate and Rs 58,800 to Rs 79,800 in veneer with PU. A bay with an open mirror panel bills less shutter area, so read those figures as ceilings.

For the high end, our JP Nagar master bedroom guide places an integrated dressing unit with a mirror in the Signature tier, Rs 3.60 to Rs 4.80 lakh for a 130 to 180 sq ft room, while the Standard tier of the 10 x 12 plan holds a 3 ft dresser or study nook inside Rs 2.16 to Rs 3.12 lakh. We have no dressing-unit-only job to quote, and I will not invent one. Those are published tier figures, not a single invoice.

On flexibility, a table moves to your next flat and a bay does not. A bay is also the one choice you must make early. In our JP Nagar timeline the bay-by-bay review happens in week 1 and a change there costs nothing, while the same change in week 3, after the carcass is on site, can cost Rs 8,000 to Rs 15,000 and delay handover by 4 to 6 days.

My observation: nobody judges a dressing table by the table. They judge it by whether the mirror shows their face evenly at 7 in the morning, so spend on mirror height and the two side lights before you spend on the carcass finish.

  • A freestanding dressing table of 3 x 1.5 ft takes 4.5 sq ft, which is 7.5 percent of the 60 sq ft free floor in a 10 x 12 bedroom.
  • Listed freestanding tables run Rs 6,499 to Rs 44,999 in October 2026, and a 3 ft built-in bay runs Rs 23,100 to Rs 79,800.
  • Counter height is 72 to 78 cm, stool height 42 to 45 cm and mirror centre 105 to 115 cm from the floor.
  • Mirror width is about two-thirds of the table: 60 cm for a 90 cm table and 80 cm for a 120 cm table.
  • Make-up light suits 4000K to 5000K, and softer lounge light suits 2700K to 3000K.
  • A bay changed in week 3 on site cost Rs 8,000 to Rs 15,000 and 4 to 6 days, and before that it costs nothing.

Get a Free Layout Sketch

Send your floor plan; we return a custom layout in 3 working days.

WhatsApp UsCall +91 94499 00222

Footprint, Counter Width, Price and Flexibility: Where Do the Two Setups Part?

The chart sets a freestanding table against a 3 ft built-in bay on the five points that decide a bedroom. The counter widths are 90 to 120 cm for a freestanding table and 76 to 91 cm for a bay, which are the 30 to 36 inch dressing zones we draw in wardrobe walls. The freestanding price is retail listings, while the bay price is our arithmetic on published wardrobe rates.

Comparison of freestanding dressing table and built-in 3 ft dressing bay: floor 4.5 sq ft versus 0 sq ft extra, counter 90 to 120 cm versus 76 to 91 cm, cost Rs 6,499 to Rs 44,999 versus Rs 23,100 to Rs 79,800, moves with you yes versus no, lock the choice any time versus before week 3 on site
Freestanding table against a built-in 3 ft bay on floor, width, cost, portability and timing.
Freestanding table or built-in dressing bay
CriterionFreestanding tableBuilt-in 3 ft bay
Furniture on the floor4.5 sq ft (3 x 1.5 ft)0 sq ft extra
Counter width90 to 120 cm76 to 91 cm (30 to 36 in)
Cost in 2026Rs 6,499 to Rs 44,999Rs 23,100 to Rs 79,800
Moves with youYesNo, fixed in carpentry
Lock the choiceAny timeBefore week 3 on site

The row that surprises people is the last one. A table can be bought on the day the room is finished, but a bay has to be drawn before the carcass is cut, so choosing it late is not really a choice.

Compare 3 Budget Tiers

Basic, Standard, Premium side-by-side for your project.

WhatsApp UsCall +91 94499 00222

What Does a 3 ft Dressing Bay Cost by Finish, and Where Does a Freestanding Table Overtake It?

Our published 2026 wardrobe finish rates are Rs 1,100 to Rs 1,400 per sq ft for membrane laminate, Rs 1,400 to Rs 1,800 for matte laminate and Rs 2,800 to Rs 3,800 for veneer with PU. A 3 ft wide bay at a 7 ft ceiling height is 21 sq ft, so the three finishes come to Rs 23,100 to Rs 29,400, Rs 29,400 to Rs 37,800 and Rs 58,800 to Rs 79,800.

Cost of a dressing setup in 2026: membrane laminate bay Rs 23,100 to Rs 29,400, matte laminate bay Rs 29,400 to Rs 37,800, veneer with PU bay Rs 58,800 to Rs 79,800, listed freestanding table Rs 6,499 to Rs 44,999
A 3 ft built-in bay billed as 21 sq ft of wardrobe area, against listed freestanding tables.
Cost of a dressing setup in 2026
OptionCost in 2026
Membrane laminateRs 23,100 to Rs 29,400
Matte laminateRs 29,400 to Rs 37,800
Veneer + PURs 58,800 to Rs 79,800
Freestanding table, listedRs 6,499 to Rs 44,999

Two readings follow. First, the top of the freestanding range overtakes the middle of the bay range: the Rs 44,999 solid sheesham dresser on Pepperfry costs more than a matte laminate bay at Rs 29,400 to Rs 37,800. Second, the Rs 6,499 unit is a different product class from a bay with soft-close drawers and a matched counter. Bay figures are ceilings, because a counter section and an open mirror panel carry less shutter area than a full-height wardrobe.

Free Cost Estimate in 48 Hours

Share your room and style preference for a fast quote.

WhatsApp UsCall +91 94499 00222

Where Does the 4.5 sq ft Go in a 10 x 12 Bedroom, and What Does the Stool Still Need?

A freestanding table is 3 ft wide and 1.5 ft deep, which is 4.5 sq ft of furniture. The table is only half the story, because someone has to sit at it. Studio Matrx, in its July 2026 dressing table guide, puts the stool at 42 to 45 cm high with 60 to 75 cm of pull-back space, and the total footprint of a freestanding set at about 90 x 120 cm, or 11.6 sq ft. A built-in bay lets the stool tuck under a 60 x 60 cm knee gap, so only the pull-back strip is left, and that strip doubles as walkway.

Share of the Room a 4.5 sq ft Freestanding Dressing Table Takes
Bedroom sizeTable share of the roomDedicated 90 x 120 cm footprint share
120 sq ft (10 x 12 ft)3.8 percent9.7 percent
130 sq ft3.5 percent8.9 percent
160 sq ft2.8 percent7.3 percent
180 sq ft2.5 percent6.5 percent

The shares are plain arithmetic: 4.5, and 11.6 for the dedicated footprint, divided by the room area. Here is a crude price of the floor you win back. At the low end a bay costs Rs 23,100 against Rs 6,499, a gap of Rs 16,601. Spread over the 4.5 to 11.6 sq ft returned, that is Rs 1,430 to Rs 3,690 per sq ft, against Rs 1,800 to Rs 2,600 per sq ft for fitting out the Standard tier. In a small room the footprint is the scarce thing, so the bay is fair value. In a 180 sq ft room it is a style choice.

Get Your Project Timeline in 48 Hours

Milestone-by-milestone plan from measurement to handover.

WhatsApp UsCall +91 94499 00222

Mirror at 105 to 115 cm and Light at 4000K to 5000K: How Should the Dressing Zone Be Set Up?

Studio Matrx puts the counter at 72 to 78 cm (aim for 75 cm), the seated eye line at 105 to 115 cm from the floor, and the top of a mirror meant for a standing view at 150 to 180 cm. For width, the Hollywood Mirrors guide gives a rule of about two-thirds of the table: a 48 inch table pairs with a 32 inch mirror. In centimetres, a 90 cm table takes a 60 cm mirror and a 120 cm table takes about 80 cm. Our own wardrobe work has moved to narrower mirror strips near the dressing zone in place of full-height mirror shutters.

For light, Studio Matrx suggests 4000K to 5000K, a neutral to daylight white, for make-up, and 2700K to 3000K, a warm white, for lounge lighting. Our standard dressing zone has a 30 to 36 inch counter, a stool, a vertical mirror and a soft sconce on each side, because light from both sides lights the face evenly where a single ceiling light casts a shadow under the chin. Put the sconces on their own switch so that the make-up light and the evening mood can be set separately.

Anchor a tall mirror to the wall, as Studio Matrx advises. In a built-in bay that fixing is part of the carpentry.

Frequently Asked Questions About Dressing Table Design

How wide should a dressing table mirror be?

About two-thirds of the table width. For a 90 cm table that is 60 cm, and for a 120 cm table about 80 cm, which matches the Hollywood Mirrors example of a 48 inch table with a 32 inch mirror. Our own bedroom work now favours narrower mirror strips near the dressing zone.

What height should a dressing table and stool be?

Studio Matrx gives a counter height of 72 to 78 cm, aiming for about 75 cm, with a stool at 42 to 45 cm. Leave a knee gap of about 60 cm wide and 60 cm high, and 60 to 75 cm of pull-back space in front of the table.

Which light colour suits a dressing mirror?

For make-up, 4000K to 5000K, a neutral to daylight white. For a softer lounge mood, 2700K to 3000K. We place a sconce on each side of a vertical mirror so the face is lit evenly.

Is a Rs 6,499 freestanding dressing table worth buying?

It depends on what the price includes. Pepperfry lists dressing units from Rs 6,499 for an engineered-wood teak-finish unit up to Rs 44,999 for a solid sheesham dresser in October 2026. Check whether the mirror and stool are included, and whether the carcass is engineered wood or solid wood, before you compare it with a built-in bay.

How late can I change a built-in dressing bay on site?

In our published JP Nagar timeline, the bay-by-bay review in week 1 is where a change costs nothing. The same change in week 3, once the carcass is on site, can cost Rs 8,000 to Rs 15,000 and delay handover by 4 to 6 days.

Limitations: freestanding prices are one retailer's October 2026 listings, and bay figures are our arithmetic on published wardrobe rates, never a quotation. Your own bay depends on carcass depth, hardware brand and ceiling height, so measure before you decide.

Sources

The sources behind these numbers are the Studio Matrx dressing table and vanity guide for Indian bedrooms, July 2026, the Hollywood Mirrors guide to dressing table mirror size and the Pepperfry dressing table listings. Our own rates and timelines come from myNivasa published guides and project records.

See Real Bengaluru Projects Near You

Visit our finished projects; feel the space; verify the finish.

WhatsApp UsCall +91 94499 00222

Final Word

Decide the dressing zone before the carpenter cuts the carcass, then let your room size make the call: a built-in bay at 130 sq ft or less, a freestanding table at 160 sq ft or more, and a rent-or-move question in between. For related reading, see our 10 x 12 master bedroom layout guide, our master bedroom design ideas guide, our sliding against hinged wardrobe comparison and our wardrobe internal sizes guide. To see a finished dressing bay in person, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Open kitchen drawer with a side mounted telescopic channel and cutlery tray in a modern Bengaluru kitchen, 2026, by myNivasa

Tandem Box vs Telescopic Channel: Cost per Kitchen Drawer

Last Updated: October 2026 | Reading time: about 10 minutes

Open kitchen drawer with a side mounted telescopic channel and cutlery tray in a modern Bengaluru kitchen, 2026, by myNivasa
A cutlery drawer running on a side mounted telescopic channel.

Short answer: A tandem box is not the stronger drawer on paper. Dealer listings give Hettich's soft-close ball-bearing channel a 35 kg rating, against 30 kg for the InnoTech tandem box and 40 kg for ArciTech. What a tandem box adds is steel drawer sides in the kit and a concealed runner, and that is where the price jumps. For a 500 mm kitchen drawer in Bengaluru in 2026, the channel is about Rs 874 per set and a Hettich tandem box Rs 3,550 to Rs 4,500, before the ply box built around the channel. Send myNivasa your drawer list and we will price both ways.

Tandem Box or Telescopic Channel: Is the Drawer Box the Real Price Difference?

A telescopic channel is a pair of rails. It sits between the cabinet side and a drawer box that your carpenter builds on site, which in our work means a 12 mm plywood box with edge banding on all four sides. A tandem box is a kit: steel side profiles with the runner built in, to which the carpenter adds a bottom and a back cut from board. Blum's brochure, for example, asks for 16 mm material for the drawer bottom and back. So the two systems do not compete rail against rail. They compete box against box.

Load ratings sit closer together than the price suggests. Hettich lists its full-extension ball-bearing runners at 35 to 45 kg with the silent system, its Quadro runners at up to 30 kg and its partial-extension ball-bearing runners at only 10 to 12 kg. Blum sells TANDEMBOX in 30 kg and 65 kg load classes. In IndiaMART dealer listings, the Hettich soft-close channel carries 35 kg at every length from 300 to 700 mm, the InnoTech tandem box 30 kg and the ArciTech 40 kg. A good soft-close channel is therefore not the weak option. The weak option is a partial-extension channel rated 10 to 12 kg.

Price is where they part. Those listings put the Hettich soft-close channel at Rs 789 per set for 300 mm, Rs 874 for 500 mm and Rs 1,188 for 700 mm, while an InnoTech tandem box at 470 mm is Rs 3,550 and an ArciTech at 500 mm is Rs 4,500. On our JP Nagar kitchen rate card, a standard 500 mm tandem drawer costs Rs 3,200 in Ebco, Rs 4,200 in Hettich and Rs 4,800 in Hafele, and the heavy versions cost Rs 4,800, Rs 6,400 and Rs 7,200.

One real job shows both systems in a single home. In our Brigade Cosmopolis study room, a 3 BHK of 1,820 sq ft finished in January 2026, the adult desk got Blum Tandembox drawers and the kids' table got Hettich Quadro hardware. The three units billed Rs 3.42 lakh including GST over 31 working days.

My observation: the carpenter's ply box is the line most quotes hide when they sell a channel as the cheap option. I will not guess its price for you, so ask for it as a separate line and compare box against box.

  • Dealer listings rate the Hettich soft-close channel at 35 kg, InnoTech at 30 kg and ArciTech at 40 kg.
  • A 500 mm soft-close channel is Rs 874 per set, and a tandem box is Rs 3,550 to Rs 4,500.
  • Blum deducts 75 mm of width for its drawer bottom, while a side-mount channel takes 25.4 mm.
  • At 40 openings a day, a 30,000 cycle channel lasts about 2.1 years and an 80,000 cycle one about 5.5 years.
  • Six drawers cost Rs 5,244 on channels and Rs 21,300 on InnoTech boxes, a gap of Rs 16,056.
  • Every three drawers moved from channel to InnoTech adds Rs 8,028.

Channel at Rs 874 or Tandem Box at Rs 3,550 to Rs 4,500: Which Costs Less per Drawer?

The chart below sets the two systems side by side on the six numbers that decide a kitchen drawer. The prices are 500 mm dealer listings and the cycle ratings are the ones we publish for each tier. Read the price row with one caution: the channel figure is the rails alone, while the tandem figure already includes the box sides.

Comparison chart of soft-close telescopic channel versus tandem box for a kitchen drawer: load 35 kg versus 30 to 40 kg, hardware Rs 874 versus Rs 3,550 to Rs 4,500, width deducted 25.4 mm versus 75 mm, six drawers Rs 5,244 versus Rs 21,300
Soft-close telescopic channel against tandem box: load, price, width, cycles and a six drawer total.
Channel vs Tandem Box: Cost per Kitchen Drawer
Criterion Soft-close channel Tandem box
Load rating 35 kg 30 to 40 kg
Hardware price Rs 874 (500 mm) Rs 3,550 to Rs 4,500
Drawer box Ply, built on site Steel sides in the kit
Width deducted 25.4 mm in all 75 mm (Blum rule)
Rated cycles 30,000 to 80,000 80,000 to 100,000
Six drawers Rs 5,244 Rs 21,300 (InnoTech)

Our JP Nagar rate card adds the warranty view. Hettich and Hafele hardware there carries 10 years, and Ebco carries 5. Those warranty terms and the Rs 3,200 to Rs 7,200 range for 500 mm tandem drawers are the numbers to hold a quotation against.

Compare 3 Hardware Tiers

Ozone, Hettich, Blum, see the difference in feel and life.

WhatsApp UsCall +91 94499 00222

Where Does 50 mm of Drawer Width Go in a 600 mm Cabinet?

A 600 mm wide base cabinet built from 18 mm boards has a clear inside width of 564 mm. A side-mount ball-bearing channel needs half an inch, 12.7 mm, on each side, so that opening takes a drawer box 538.6 mm wide. Blum's brochure sets the TANDEMBOX drawer bottom width at the inside cabinet width minus 75 mm, which is 489 mm on the same cabinet. The two rules measure different parts of the drawer, so treat the result as a planning figure, but the gap is about 50 mm.

Because the gap is fixed, it bites harder as cabinets narrow. It is roughly 9 percent of a 564 mm opening and roughly 12 percent of a 414 mm one, which is what a 450 mm cabinet gives. Length behaves differently. Blum lists nominal lengths of 400, 450, 500 and 550 mm, while Hettich India's telescopic channels step in 50 mm from 300 to 700 mm, so a 600 mm deep carcass takes a 500 mm drawer in either system. Depth is not where the tandem box wins or loses. Width is.

Kitchen drawer with grey steel tandem box sides holding glassware in a modern Bengaluru kitchen, 2026, by myNivasa
A tandem box drawer with steel sides carrying glassware and a plate rack.

Free Configuration Layout

Sliding vs hinged, U-shape vs L-shape, tailored to your dimensions.

WhatsApp UsCall +91 94499 00222

How Many Years Does a 30,000 Cycle Drawer Last at 10 and at 40 Openings a Day?

Our published ratings put an Ebco standard ball-bearing channel at 30,000 cycles with a 1 year warranty, Hettich Quadro 4D soft close at 80,000 cycles with 5 years, Hettich InnoTech at 80,000 cycles with 5 years and Blum Tandembox at 100,000 cycles with a lifetime mechanical warranty. Blum's own brochure reports 100,000 open and close cycles at 75 lb, about 34 kg, on a TANDEMBOX drawer.

A rating means little until it becomes years. At 10 openings a day a drawer does 3,650 cycles a year, so 30,000 cycles lasts about 8.2 years, 80,000 about 21.9 and 100,000 about 27.4. At 40 openings a day, which is our planning assumption for a cutlery or masala drawer in a family kitchen, the yearly count is 14,600, and the same ratings last about 2.1, 5.5 and 6.8 years. The cheap channel is fine in a guest room or a wardrobe drawer opened a few times a day. In the one drawer you open 40 times a day, a 30,000 cycle part is not even a three year part, so spend there first.

What Do Six Kitchen Drawers Cost in Hardware on Each System?

Take the base run of a kitchen with six drawers and price only the hardware, using the listed 500 mm channel at Rs 874, the InnoTech tandem box at 470 mm for Rs 3,550 and the ArciTech at 500 mm for Rs 4,500. Those are the nearest lengths each maker lists.

Hardware total for six kitchen drawers, Bengaluru 2026
Specification Working Hardware total
All six on soft-close channel 6 x Rs 874 Rs 5,244
Three tandem box, three channel 3 x Rs 3,550 plus 3 x Rs 874 Rs 13,272
All six on InnoTech tandem box 6 x Rs 3,550 Rs 21,300
All six on ArciTech tandem box 6 x Rs 4,500 Rs 27,000

The all-channel run is Rs 5,244 and the all-InnoTech run is Rs 21,300, a gap of Rs 16,056. Moving every group of three drawers from channel to InnoTech adds Rs 8,028, which is 3 x (Rs 3,550 minus Rs 874). These are hardware totals only. They leave out the plywood boxes that channel drawers need, the drawer fronts, handles, fitting and GST, so a channel drawer is never quite as cheap as its Rs 874 suggests.

Free Cost Estimate in 48 Hours

Share room dimensions and finish preference for a fast quote.

WhatsApp UsCall +91 94499 00222

What Do Our Study Table Jobs Show About Choosing Per Drawer?

We have no kitchen-only drawer job to quote, so the first-hand records here come from study rooms. At Salarpuria Sattva Magnus, a 2 BHK of 1,225 sq ft finished in March 2026, a 3-drawer L-shaped study table used Hettich Quadro 4D soft-close drawers and billed Rs 1.08 lakh including 18 percent GST over 19 working days. Our published guidance from those jobs is that the hardware choice alone moves a 3-drawer table's bill by Rs 6,000 to Rs 11,000, and that mixing brands between rooms creates a service problem 4 to 6 years later, when one channel fails and the dealer is no longer around.

My rule of thumb, which is a judgement and not a measurement, follows from the numbers above. Give a soft-close channel to cutlery, masala and other light drawers, especially in narrow cabinets where 50 mm of width matters. Give a tandem box to the wide drawers under the hob that carry pots and a full stack of plates, where the 40 kg ArciTech rating and the steel sides earn the extra Rs 2,700 to Rs 3,600 per drawer over a channel. Keep one brand across the kitchen so the spare part exists when you need it.

Visit Our Vignan Nagar Studio

See real samples, hardware, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About Tandem Box and Drawer Channel Cost

How much does a Hettich telescopic drawer channel cost in India?

IndiaMART listings of the Hettich soft-close channel run from Rs 789 per set for 300 mm to Rs 1,188 for 700 mm, with Rs 860 for 450 mm and Rs 874 for 500 mm. Each set is a left and right pair rated 35 kg.

What load can a tandem box carry?

Dealer listings rate the Hettich InnoTech tandem box at 30 kg and the ArciTech at 40 kg. Blum sells TANDEMBOX in 30 kg and 65 kg classes. A Hettich full-extension ball-bearing channel with the silent system is rated 35 to 45 kg.

Is a tandem box worth the extra money in a Bengaluru kitchen?

For wide pot drawers under the hob, usually yes: a tandem box costs Rs 3,550 to Rs 4,500 against Rs 874 for a channel, but it brings steel sides and a 40 kg ArciTech option. For light cutlery or masala drawers a soft-close 35 kg channel does the job at lower cost.

Which tandem box brand suits which budget?

On our JP Nagar rate card a standard 500 mm tandem drawer costs Rs 3,200 in Ebco with 5 years of warranty, Rs 4,200 in Hettich and Rs 4,800 in Hafele with 10 years each. Dealer listings put Hettich InnoTech at Rs 3,550 and ArciTech at Rs 4,500.

Limitations: every price here is a 2026 dealer listing or our published rate card, never a quotation. Drawer length, load class and brand will move your own bill, so measure before you commit.

Sources

The sources behind these numbers are Hettich drawer runner load classes, Blum TANDEMBOX brochure with the width formula and cycle test, IndiaMART Hettich tandem box listings and IndiaMART Hettich soft-close channel listings. Our own rates and cycle ratings come from myNivasa published rate cards and project records.

Final Word

Price the drawer box and the rails as two lines, then decide drawer by drawer where a steel box earns its premium. For related reading, see our wardrobe hardware brand comparison, our wardrobe internal sizes and drawer depth guide, our guide to what a modular kitchen quote leaves out and our kitchen tall unit cost guide. To feel both drawers side by side, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Bright Bengaluru room with new light grey vitrified tile floor and white skirting, 2026, by myNivasa

How Much Does Tile Flooring Cost for a 2BHK in Bengaluru?

Last Updated: October 2026 | Reading time: about 10 minutes

Bright Bengaluru room with new light grey vitrified tile floor and white skirting, 2026, by myNivasa
A finished vitrified tile floor with skirting in a bright room.

Short answer: Re-tiling a 900 sq ft Bengaluru 2BHK costs about Rs 0.95 lakh to Rs 2.16 lakh in 2026 when the old floor is broken out first, against about Rs 0.81 lakh to Rs 1.89 lakh when the new tile is laid over the old one. That is Rs 105 to Rs 240 per sq ft with removal and Rs 90 to Rs 210 without. Large 800 x 1600 mm slabs sit above both: our Whitefield job billed Rs 305 per sq ft. Send myNivasa your floor plan and we will price all three tiers side by side.

What Does Tile Flooring Cost for a 900 sq ft 2BHK in Bengaluru in 2026?

We use 900 sq ft of laid floor as the working size for a 2BHK: living, dining, two bedrooms, passage and kitchen, with bathrooms and balcony priced separately. On that 900 sq ft, our published Bengaluru bands for 2026 are Rs 60 to Rs 150 per sq ft for the tile, Rs 30 to Rs 60 per sq ft for laying with adhesive, and Rs 15 to Rs 30 per sq ft to break out and carry away the old floor.

Add the three and a floor with removal runs Rs 105 to Rs 240 per sq ft, which is Rs 94,500 to Rs 2,16,000 over 900 sq ft. Skip removal by laying over the old tile and the band is Rs 90 to Rs 210, or Rs 81,000 to Rs 1,89,000. Outside sources land in the same corridor. NoBroker lists vitrified tile laying labour at Rs 30 to Rs 50 per sq ft, and infralens.in lists Bangalore dealer prices of Rs 62 to Rs 115 for a standard 2 x 2 ft vitrified tile in August 2026.

One real job anchors the top end. In an early 2026 renovation of a 2011 apartment in Whitefield, 800 x 1600 mm vitrified slabs over 1,050 sq ft of laid area billed Rs 3.2 lakh, a rate that sits above the standard band for reasons explained below.

My observation: families compare tile prices per box and forget that laying and removal together add Rs 45 to Rs 90 per sq ft on top. Ask every dealer and every mason for the three numbers separately, and the quotes become comparable.

  • A 900 sq ft 2BHK floor costs Rs 94,500 to Rs 2,16,000 with the old tile removed, and Rs 81,000 to Rs 1,89,000 laid over it.
  • Per sq ft the three layers are tile Rs 60 to Rs 150, laying Rs 30 to Rs 60 and removal Rs 15 to Rs 30.
  • Laying over old tile raises the floor by about 15 to 20 mm, so check every door before you choose it.
  • A 600 x 600 mm tile covers 3.88 sq ft, so 900 sq ft needs about 244 tiles with a 5 percent allowance.
  • Our Whitefield 800 x 1600 mm floor billed Rs 3.2 lakh for 1,050 sq ft, or Rs 305 per sq ft.
  • Vitrified tile under IS 15622 must absorb no more than 0.5 percent water by weight.

What Do Essential, Comfort and Signature Tile Floors Cost in a 900 sq ft Flat?

The three tiers below split our published bands by tile grade, so each one carries its own tile, laying and removal rate and the totals follow by arithmetic. Essential is a plain 600 x 600 mm glazed vitrified tile at Rs 105 to Rs 145 per sq ft all in, which is about Rs 0.95 lakh to Rs 1.31 lakh. Comfort is a branded vitrified tile at Rs 145 to Rs 195, about Rs 1.31 lakh to Rs 1.76 lakh. Signature is rectified or large-format tile at Rs 195 to Rs 240, about Rs 1.76 lakh to Rs 2.16 lakh.

2BHK tile flooring cost tiers Bengaluru 2026 for 900 sq ft with old floor removed: Essential Rs 0.95 to 1.31 lakh, Comfort Rs 1.31 to 1.76 lakh, Signature Rs 1.76 to 2.16 lakh, by myNivasa
Three tile flooring budget tiers for a 900 sq ft 2BHK.
2BHK Tile Flooring Cost Bengaluru 2026
TierCostWhat is included
EssentialRs. 0.95 to 1.31 lakh600x600 glazed vitrified, Rs. 60 to 85 per sq ft; Laying Rs. 30 to 40, removal Rs. 15 to 20 per sq ft; Rs. 105 to 145 per sq ft all in
ComfortRs. 1.31 to 1.76 lakhBranded vitrified, Rs. 85 to 120 per sq ft; Laying Rs. 40 to 50, removal Rs. 20 to 25 per sq ft; Rs. 145 to 195 per sq ft all in
SignatureRs. 1.76 to 2.16 lakhRectified or large format, Rs. 120 to 150 per sq ft; Laying Rs. 50 to 60, removal Rs. 25 to 30 per sq ft; Rs. 195 to 240 per sq ft all in

Compare 3 Budget Tiers

Essential, Comfort, Signature side-by-side for your project.

WhatsApp UsCall +91 94499 00222

Why Did Our Whitefield Slab Floor Bill Rs 305 per sq ft When the Band Says Rs 90 to Rs 210?

In that Whitefield job the flooring line read Rs 3.2 lakh for 1,050 sq ft of laid 800 x 1600 mm vitrified tile. Divide 3,20,000 by 1,050 and the rate is about Rs 305 per sq ft. Demolition was billed separately for the whole project at Rs 1.1 lakh, so the Rs 305 is not hiding a removal charge. The slab format is the reason.

A single 800 x 1600 mm slab is 13.8 sq ft. A 900 sq ft flat needs 66 of them before waste, and about 72 with a 10 percent allowance, because large slabs are cut around columns, door frames and niches and every offcut is lost. They also need a flatter base, so the screed is often corrected first, and fewer joints mean the mason has no room to hide a lipped edge.

We did not split that Rs 3.2 lakh into tile and labour in our published record, so read Rs 305 as an all-in reference for a large-format floor and not as a labour rate. Scaled to 900 sq ft it would be about Rs 2.7 lakh, above the top of our Signature tier, so budget a seamless look as its own tier.

Get a Line-Item BOQ

Every tile, bag of adhesive, and labour hour, transparent quotation.

WhatsApp UsCall +91 94499 00222

Can You Lay New Tile Over the Old Floor in a Bengaluru Apartment, and What Does It Save?

Yes, if the old floor is sound, and it saves the Rs 15 to Rs 30 per sq ft removal line, which is Rs 13,500 to Rs 27,000 on 900 sq ft. The price of that saving is height. A vitrified tile is roughly 10 mm thick and the adhesive bed adds 5 to 8 mm, so the floor rises about 15 to 20 mm. A door that clears the old floor by less than that will drag, and you will be planing door bottoms in every room.

New tile over the old floor, or old floor removed first, 900 sq ft 2BHK
OptionRate per sq ftCost on 900 sq ftFloor rises byMain risk
Lay over old tileRs 90 to Rs 210Rs 81,000 to Rs 1,89,000About 15 to 20 mmHollow old tiles telegraph through; doors may drag
Remove, then layRs 105 to Rs 240Rs 94,500 to Rs 2,16,000None, level can be resetDebris, dust, and a slower job

Before you commit to laying over, tap the old tiles with a steel rod or the back of a spoon. A dull, hollow sound means the old tile has lifted from its bed, and a new tile glued over it will crack along the same lines. Fix those patches or take that area out.

Book a Free Site Visit

We measure your space and confirm feasibility on the same visit.

WhatsApp UsCall +91 94499 00222

What Changes in the Bill When You Move from 600 x 600 to 800 x 800 to 800 x 1600 mm Tile?

Size changes how many pieces you buy, how much you waste and how fussy the laying is, but it does not set the price per sq ft on its own. A 600 x 600 mm tile covers 3.88 sq ft, an 800 x 800 mm tile 6.89 sq ft and an 800 x 1600 mm slab 13.78 sq ft. For 900 sq ft with our planning allowance, that is about 244 tiles of 600 x 600 at 5 percent waste, about 141 tiles of 800 x 800 at 8 percent, and about 72 slabs of 800 x 1600 at 10 percent.

Brand and finish drive the price more than size. infralens.in lists an Asian Granito 800 x 800 tile at an average Rs 68 per sq ft in Bangalore, below a Kajaria 600 x 600 glossy tile at Rs 165. Labour climbs with size, because fewer masons can lay a 13.8 sq ft slab flat.

What Do Bengaluru Dealers Charge for the Tile Itself in 2026?

The chart shows average listed prices per sq ft for tile and stone in Bangalore on 12 August 2026, from infralens.in. They are material only, and dealer-to-retail spreads are wide. Kajaria 600 x 600 glossy ranges Rs 90 to Rs 240 around its Rs 165 average, and a standard 2 x 2 ft vitrified tile ranges Rs 62 to Rs 115 around Rs 89.

Floor tile and stone retail price per sq ft Bangalore Aug 2026: Kota Stone Rs 47, Asian Granito 800x800 Rs 68, standard 2x2 Rs 89, Somany Rs 118, Kajaria Rs 165, Indian marble Rs 190, by myNivasa
Average Bangalore retail price per sq ft for six floor tile and stone options.
Floor Tile and Stone Retail Price per Sq Ft
Tile or stoneAverage retail price per sq ft
Kota StoneRs. 47
Asian Granito 800x800Rs. 68
Standard 2x2 ft vitrifiedRs. 89
Somany 600x600 glossyRs. 118
Kajaria 600x600 glossyRs. 165
Indian marbleRs. 190

Our Rs 60 to Rs 150 tile band sits inside that spread. Buy a branded glossy tile at retail and you can land above our Rs 150 ceiling, so compare your dealer quote against the whole laid rate.

Get Your Project Timeline in 48 Hours

Milestone-by-milestone plan from measurement to handover.

WhatsApp UsCall +91 94499 00222

Which Costs Sit Outside the Per sq ft Rate When You Replace a 2BHK Floor?

Five items are routinely missing from a floor quote. Skirting is the first: the old run comes off with the old tile and the new one needs cutting and fixing. Door bottoms are the second, because a new floor rarely lands at exactly the old level.

Thresholds at the bathrooms, kitchen and balcony are the third. The fourth is debris: a 900 sq ft floor broken out is a lot of rubble, and many apartment societies set carting hours and lift rules, so ask your association before the hammer comes out. The fifth is furniture, since the flat must be emptied room by room and every cupboard moved twice.

Hexagon patterned tile entrance meeting a wooden floor in a Bengaluru apartment passage, 2026, by myNivasa
A tile-to-wood floor transition in a passage, one of the extras a tile quote can leave out.

Lay tile before carpentry and final painting so slabs and debris do not scratch new shutters. If a bedroom will be wood, our guide on wooden flooring for a Bengaluru bedroom prices that part, and our bathroom renovation cost guide covers the wet-area tiles that this 900 sq ft figure leaves out.

Visit Our Vignan Nagar Studio

See real samples, hardware, and finished-project photos at our office.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About 2BHK Tile Flooring Cost

How much does tile laying labour cost per sq ft in Bengaluru?

Our published band for laying with adhesive is Rs 30 to Rs 60 per sq ft in 2026. NoBroker lists vitrified tile labour at Rs 30 to Rs 50 per sq ft and porcelain at Rs 35 to Rs 55. Breaking out the old floor is a separate Rs 15 to Rs 30 per sq ft.

How many 600 x 600 mm tiles do I need for 900 sq ft?

A 600 x 600 mm tile covers 3.88 sq ft, so 900 sq ft needs 232 tiles before waste. With a 5 percent allowance for cuts and breakage, order about 244 tiles, which is roughly 61 boxes if each box holds 4 tiles.

Does IS 15622 matter when I choose vitrified tile?

Yes, because IS 15622 is the Indian standard for ceramic tiles, and vitrified and porcelain tiles in its lowest absorption group must absorb no more than 0.5 percent water. Ask the dealer for the absorption figure.

Should the tile go in before the wardrobes and false ceiling?

Lay the floor after demolition and any ceiling dust work, and before carpentry and final painting. Heavy slabs and mortar scratch finished shutters and walls.

What would the same job cost in a 1,300 sq ft 3BHK?

At 1,300 sq ft of laid floor, the same bands give Rs 1,36,500 to Rs 3,12,000 with the old tile removed, and Rs 1,17,000 to Rs 2,73,000 laid over it. The rate per sq ft stays put, so only the area changes the total.

Limitations: rates are 2026 published ranges and dealer listings, not quotes. Slab edges, floor levels and old-floor condition change a real price, so confirm on site.

Sources

Figures come from these sources: infralens.in Bangalore tile prices, updated 12 August 2026, NoBroker on tile laying labour rates, infralens.in summary of IS 15622:2017, and StudioMatrx on Bangalore tile flooring cost. Our own rates come from myNivasa published bands and our Whitefield project record.

Final Word

Price a floor in three separate lines, tile, laying and removal, and decide early between laying over and breaking out. For related reading, see our home renovation cost per sq ft guide, our 2BHK renovation cost in Bangalore, and our bathroom renovation cost guide. To see tile samples and finished floors, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].

Grey L-shaped sofa with chaise facing a wall-mounted TV in a Bengaluru living room, 2026, by myNivasa

L-Shaped Sofa Size and Cost for a Bengaluru Living Room

Last Updated: October 2026 | Reading time: about 10 minutes

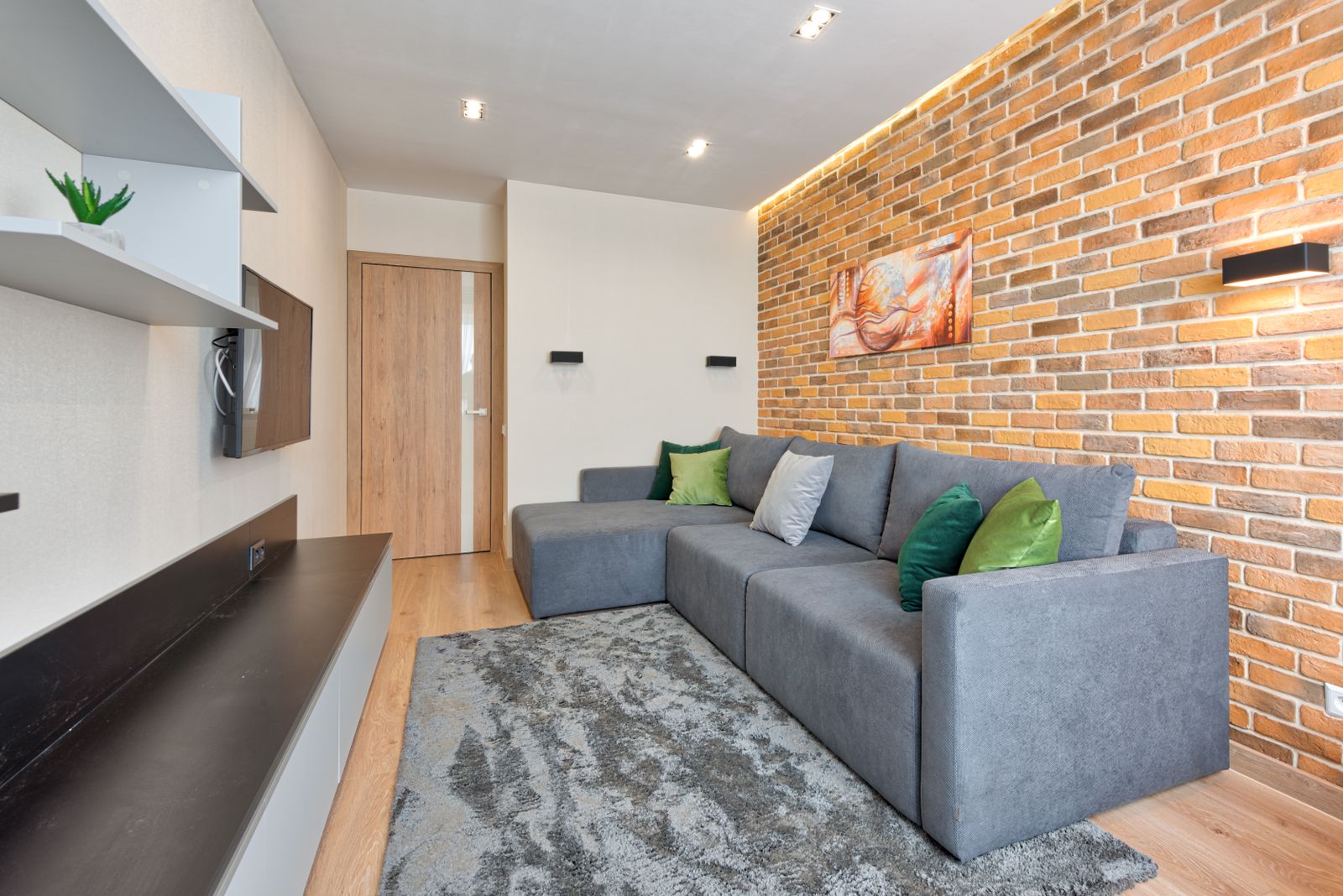

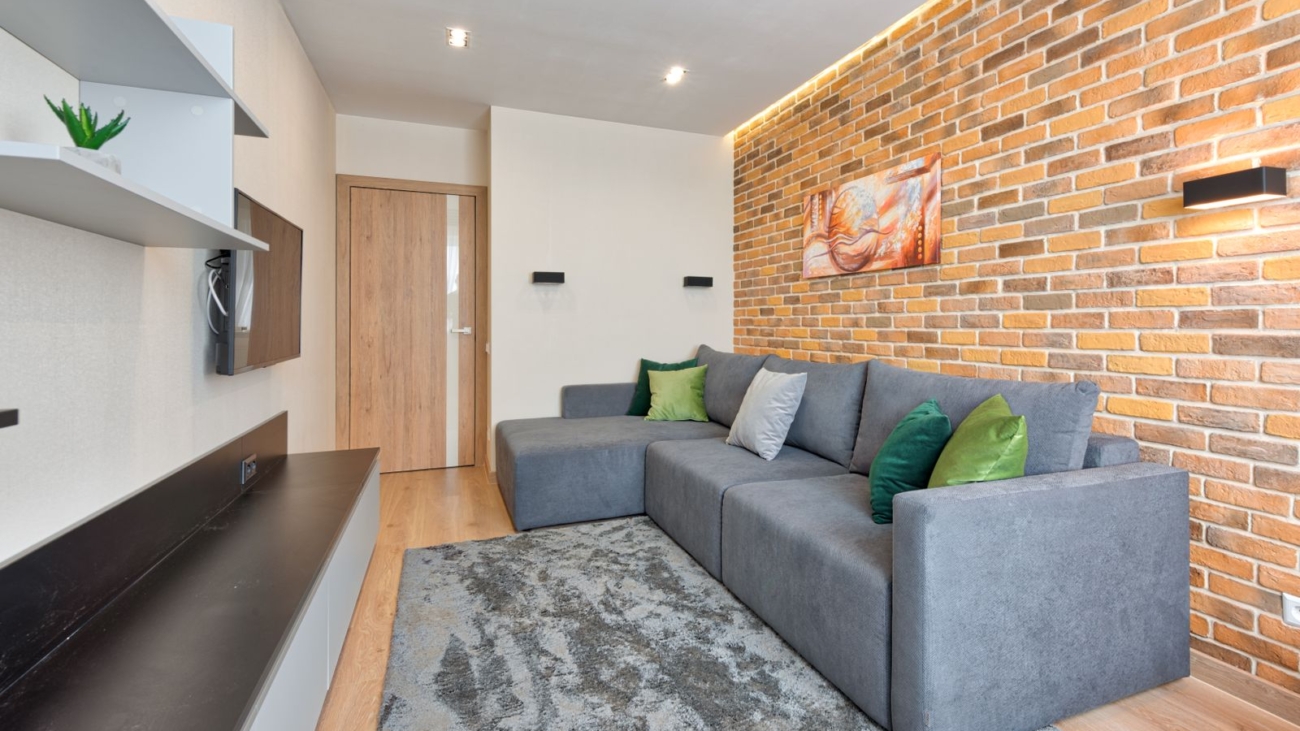

Grey L-shaped sofa with chaise facing a wall-mounted TV in a Bengaluru living room, 2026, by myNivasa
A grey L-shaped sofa with the chaise at the open end of the room.

Short answer: If your Bengaluru living room is 12 x 14 ft or larger, a 9 x 6 ft L-shaped sofa with a 3 ft depth fits comfortably, covers only 21 percent of the floor, and costs Rs 45,000 to Rs 90,000 in custom work in 2026. If the room is 10 x 12 ft, the same sofa takes 30 percent of the floor, so step down to a 7 x 5 ft corner model that takes 23 percent. Ready-made L-shapes start near Rs 20,500 and premium ones reach Rs 1.8 lakh. A free 15-minute consultation with myNivasa can check your exact wall lengths.

Which L-Shaped Sofa Size Suits a 12 x 14 ft Bengaluru Living Room?

A 12 x 14 ft living room is 168 sq ft, and the sofa that suits it is a 9 x 6 ft L-shape: a 9 ft main run, a 6 ft return with the chaise, and a depth of 3 ft. The Interior Company lists an L-shaped sofa as 95 to 115 inches on the long side (241 to 292 cm), 60 to 75 inches on the short side (152 to 191 cm), and 30 to 38 inches deep. Pepperfry lists the main section at 84 to 110 inches and the chaise at 60 to 80 inches.

Seat depth is usually 20 to 24 inches, seat height 16 to 20 inches, and overall height 28 to 36 inches. For a smaller room, Furnishka describes a corner of about 7 x 5 ft as the compact choice and about 8 ft of free wall as the minimum for a standard two-bedroom flat.

Our own published guidance points the same way. In our Whitefield living room guide we recommend the L-shaped layout for rooms of 200 to 280 sq ft with 5 to 7 seats, and we quote the sofa separately from the interior scope at Rs 45,000 to Rs 1.8 lakh depending on size and fabric. In a 168 sq ft room you sit just under that range, so you pick the 9 x 6 ft size and keep the chaise on the open side.

My observation: people choose the sofa in a showroom and measure the room afterwards. Measure the room first, mark the 9 x 6 ft shape on the floor with masking tape, and walk around it for a minute. That small test catches most sizing mistakes before any money moves.

  • A 9 x 6 ft L-sofa with a 3 ft depth has a footprint of 36 sq ft, which is 21 percent of a 12 x 14 ft room and 30 percent of a 10 x 12 ft room.
  • Keep about 18 inches (46 cm) between the sofa edge and the coffee table.
  • For a 65-inch 4K TV the ideal viewing distance is 2.48 m (about 8.1 ft); for a 55-inch it is 2.10 m (about 6.9 ft).
  • Custom L-shaped sofas in Bengaluru run Rs 45,000 to Rs 90,000; ready-made ones start near Rs 20,500.
  • Choose foam of at least 32 kg/m3 for a main living room; it lasts 8 to 12 years against 3 to 5 for 24 to 28 kg/m3.
  • The sofa should clear every doorway by at least 4 inches, so measure the narrowest point before you order.

Free 15-Minute Design Consultation

Talk to our team about layout, style, and lifestyle fit.

WhatsApp UsCall +91 94499 00222

How Much of a 10 x 12 ft Room Does a 9 x 6 ft L-Sofa Take Compared With a 14 x 18 ft Room?

The footprint of a 9 x 6 ft L-sofa with a 3 ft depth is the 9 x 3 ft main run plus the 3 x 3 ft corner return: 27 plus 9 gives 36 sq ft. Divide that by the room area and you see how crowded the room will feel. In a 10 x 12 ft room (120 sq ft) the sofa takes 30 percent. In a 12 x 14 ft room (168 sq ft) it takes 21 percent, in a 12 x 16 ft room (192 sq ft) 19 percent, and in a 14 x 18 ft room (252 sq ft) 14 percent.

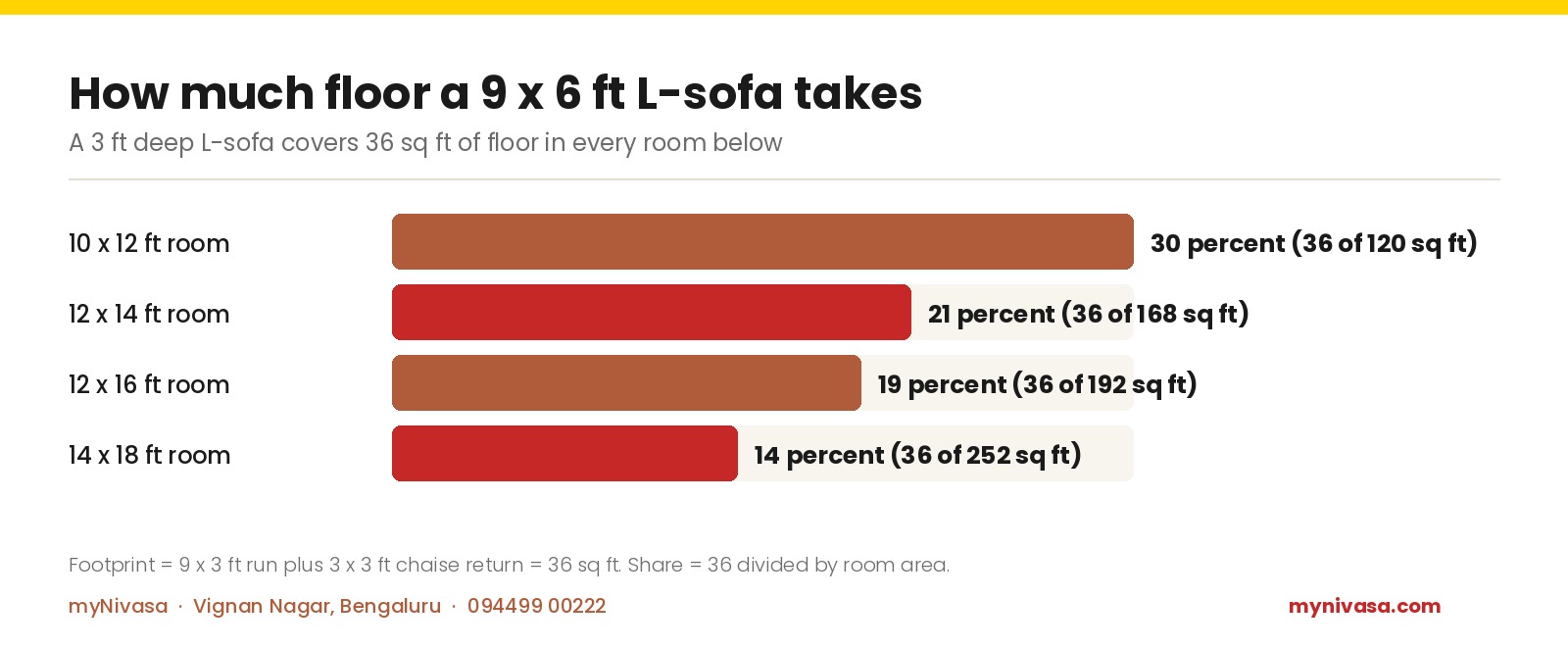

Bar chart: a 9 x 6 ft L-sofa with 36 sq ft footprint takes 30 percent of a 10 x 12 ft room, 21 percent of 12 x 14 ft, 19 percent of 12 x 16 ft and 14 percent of 14 x 18 ft
Share of floor taken by a 9 x 6 ft L-sofa in four room sizes.
How much floor a 9 x 6 ft L-sofa takes
Room sizeShare of floor taken by the sofa
10 x 12 ft room30 percent (36 of 120 sq ft)
12 x 14 ft room21 percent (36 of 168 sq ft)
12 x 16 ft room19 percent (36 of 192 sq ft)
14 x 18 ft room14 percent (36 of 252 sq ft)

Run the same arithmetic on our Whitefield range of 200 to 280 sq ft and the sofa takes 18 percent at the small end and 13 percent at the large end. For a 10 x 12 ft room, swap to the compact 7 x 5 ft corner: its footprint is 21 plus 6, or 27 sq ft, and it takes 23 percent of the floor. I keep the sofa below roughly a quarter of the floor in my own layouts, a judgement call and not a rule from any standard.

Free Cost Estimate in 48 Hours

Share your room and style preference for a fast quote.

WhatsApp UsCall +91 94499 00222

Which Side Should the Chaise Go, and How Far Should the TV Be?

Put the chaise at the open end of the room, away from the main door swing and away from the passage to the bedrooms.

Now the numbers. Lay the 9 ft main run along the 14 ft wall of a 12 x 14 ft room, and the sofa front sits 3 ft off the wall, leaving 9 ft (2.74 m) to the TV wall. That suits a 65-inch 4K TV, whose ideal distance is 2.48 m, using the 1.5 times the screen diagonal formula that Vogel's publishes for 4K sets. Beside the chaise end you keep 6 ft of walkway.

Try the same layout in a 10 x 12 ft room, with the main run on the 12 ft wall. The sofa front is 7 ft (2.13 m) from the TV wall. A 55-inch 4K TV wants 2.10 m, so it fits. A 65-inch wants 2.48 m (8.1 ft), so it feels slightly close. The walkway beside the chaise end shrinks to 10 minus 6, or 4 ft (1.2 m). It works, but only if the coffee table stays small. One layout guide recommends 18 inches (46 cm) between the sofa and the table, and I would not go lower in either room.

Our guidance for homes with grandparents is that a standard sofa seat at 16 to 18 inches is hard to rise from, so we add one firm chair at 19 to 20 inches. If you have seniors at home, order the L-sofa at the upper end of the 16 to 20 inch range.

Will a 9 ft L-Sofa Get Through Your Door and Into the Lift?

This is the question that never appears on a showroom tag. One furniture guide advises that the sofa should be at least 4 inches smaller than the narrowest passage it must travel through. That passage is rarely the front door; it is the lift car, a corridor turn, or a balcony door if you hoist it from outside.

Measure the main door opening, the lift's internal depth and door width, the tightest corridor corner, and the living room entry. Then ask the maker whether the L-shape ships as one piece or as two modules, a 3-seat run and a chaise. Two modules solve most delivery problems, and if the only route is a staircase with a sharp turn, they are not optional.

Compare 3 Budget Tiers

Basic, Standard, Premium side-by-side for your project.

WhatsApp UsCall +91 94499 00222

What Does an L-Shaped Sofa Cost in Bengaluru, Ready-Made or Custom?

In 2026 an L-shaped sofa for a Bengaluru living room costs between Rs 20,500 and about Rs 1.8 lakh, and the band you land in depends mostly on whether it is ready-made or built to your measurements. Pepperfry lists L-shapes from Rs 20,500 to Rs 1,34,999. Furnishka lists them from Rs 38,990 to Rs 1,22,399. A Bengaluru maker lists a 7 seater at Rs 33,990 on IndiaMART. Supplier listings on TradeIndia put neem wood sets at Rs 50,000 to Rs 90,000..

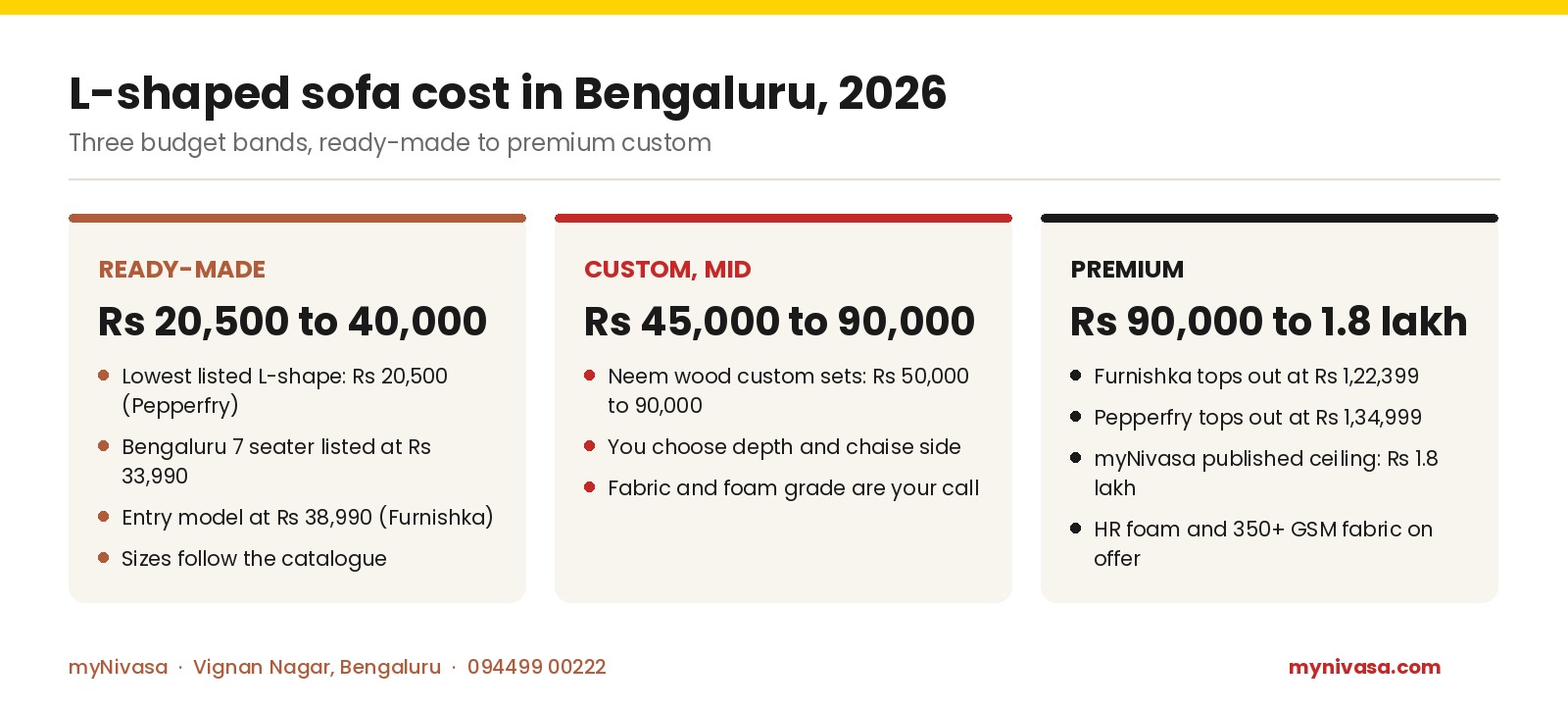

Cost cards: ready-made L-shaped sofa Rs 20,500 to 40,000, custom mid Rs 45,000 to 90,000, premium Rs 90,000 to 1.8 lakh in Bengaluru, 2026
Three budget bands for an L-shaped sofa in Bengaluru, 2026.
L-shaped sofa cost in Bengaluru, 2026
TierCostWhat is included
Ready-madeRs 20,500 to 40,000Lowest listed L-shape: Rs 20,500 (Pepperfry); Bengaluru 7 seater listed at Rs 33,990; Entry model at Rs 38,990 (Furnishka); Sizes follow the catalogue
Custom, midRs 45,000 to 90,000Neem wood custom sets: Rs 50,000 to 90,000; You choose depth and chaise side; Fabric and foam grade are your call
PremiumRs 90,000 to 1.8 lakhFurnishka tops out at Rs 1,22,399; Pepperfry tops out at Rs 1,34,999; myNivasa published ceiling: Rs 1.8 lakh; HR foam and 350+ GSM fabric on offer

On our own side, we quote the sofa at Rs 45,000 to Rs 1.8 lakh in the Whitefield living room guide, and our Hubli guide puts a custom L-shaped sofa at Rs 40,000 to Rs 1,20,000 depending on fabric and frame. In our Bengaluru cost guide we note that loose furniture such as the sofa, dining set and beds is often budgeted separately, around a further Rs 2 lakh to Rs 4 lakh, so keep the sofa as its own budget line.

Which Foam Density and Frame Are Worth Paying For?

Spend on foam first. Uberdecor, an Indian sofa maker, reports that foam at 24 to 28 kg/m3 lasts 3 to 5 years, 28 to 32 kg/m3 lasts 5 to 8 years, and 32 to 40 kg/m3 high-resilience foam lasts 8 to 12 years or more. It recommends 32 kg/m3 as the minimum for a main living room.

The cost per year makes the case. A Rs 45,000 sofa on 24 to 28 kg/m3 foam that lasts 3 to 5 years costs Rs 9,000 to Rs 15,000 a year. A Rs 70,000 sofa on high-resilience foam that lasts 8 to 12 years costs Rs 5,833 to Rs 8,750 a year. The lifespans are the maker's claim, but the direction is clear.

Then check the frame and fabric. Furnishka describes a kiln-dried neem frame of 2 x 1 inch, reinforced with 16 mm or thicker plywood, with fabric of 350 GSM or more and a rub count above 30,000. Ask any maker for the frame timber, the foam density in kg/m3 and the warranty in writing; Furnishka offers 3 years on frame, foam and workmanship.

Free Material Sample Kit

Ply, laminate, veneer, paint, real samples couriered.

WhatsApp UsCall +91 94499 00222

Frequently Asked Questions About L-Shaped Sofa Size

What is the standard size of an L-shaped sofa in India?

A standard L-shaped sofa in India is 95 to 115 inches (241 to 292 cm) on the long side, 60 to 75 inches (152 to 191 cm) on the short side, and 30 to 38 inches (76 to 97 cm) deep. Seat depth is 20 to 24 inches and overall height is 28 to 36 inches, according to The Interior Company's sofa size guide.

Can a 10 x 12 ft living room take an L-shaped sofa?

Yes, but choose a compact 7 x 5 ft corner model with a 3 ft depth. Its footprint is 27 sq ft, 23 percent of a 120 sq ft room, and the viewing distance to a TV on the opposite wall is about 7 ft (2.13 m), enough for a 55-inch 4K TV. A 9 x 6 ft sofa would take 30 percent of the floor.

How much should I budget for an L-shaped sofa in a Bengaluru 2BHK?

Budget Rs 45,000 to Rs 90,000 for a custom L-shaped sofa in 2026, with foam of at least 32 kg/m3. Ready-made options start near Rs 20,500 and premium ones go up to about Rs 1.8 lakh. The sofa is usually outside the interior quote.

How high should the seat be if elders live in the house?

A standard sofa seat sits at 16 to 18 inches, which many seniors find hard to rise from. Order the L-sofa with a seat at 18 to 20 inches, and add one firm chair at 19 to 20 inches with sturdy armrests, as we recommend in our senior-friendly design guidance.

Limitations: prices are 2026 listings and published ranges, not quotes, and sofa dimensions vary by maker. Verify every measurement in your own room.

Sources

Figures come from these sources: The Interior Company standard sofa sizes, HB Collaborative on L-shaped sofa dimensions, Vogel's ideal TV viewing distance, and Uberdecor on sofa foam density. Price listings were read from Pepperfry, Furnishka, IndiaMART and TradeIndia in October 2026.

Final Word

Choose the sofa to fit the room, not the other way round: tape out the shape, check the walkway, confirm the doors, and spend on foam. For related reading, see our living room design ideas for Whitefield, our TV unit design and cost guide, and our guest room cost guide with sofa-cum-bed options. To see finished living rooms and fabric swatches, visit us at 2nd Floor, Sapthagiri Complex, 265/1, Kaggadasapura Main Rd, Vignan Nagar, Bengaluru, Karnataka 560075, call +91 94499 00222, or write to [email protected].
